12 Crct Stked Neut C/W P1
SKU: #303384
Part: #1012MB
UPC: 662381008039
12 Crct Stked Neut C/W P1
SKU: #303384
Part: #1012MB
UPC: 662381008039
Description

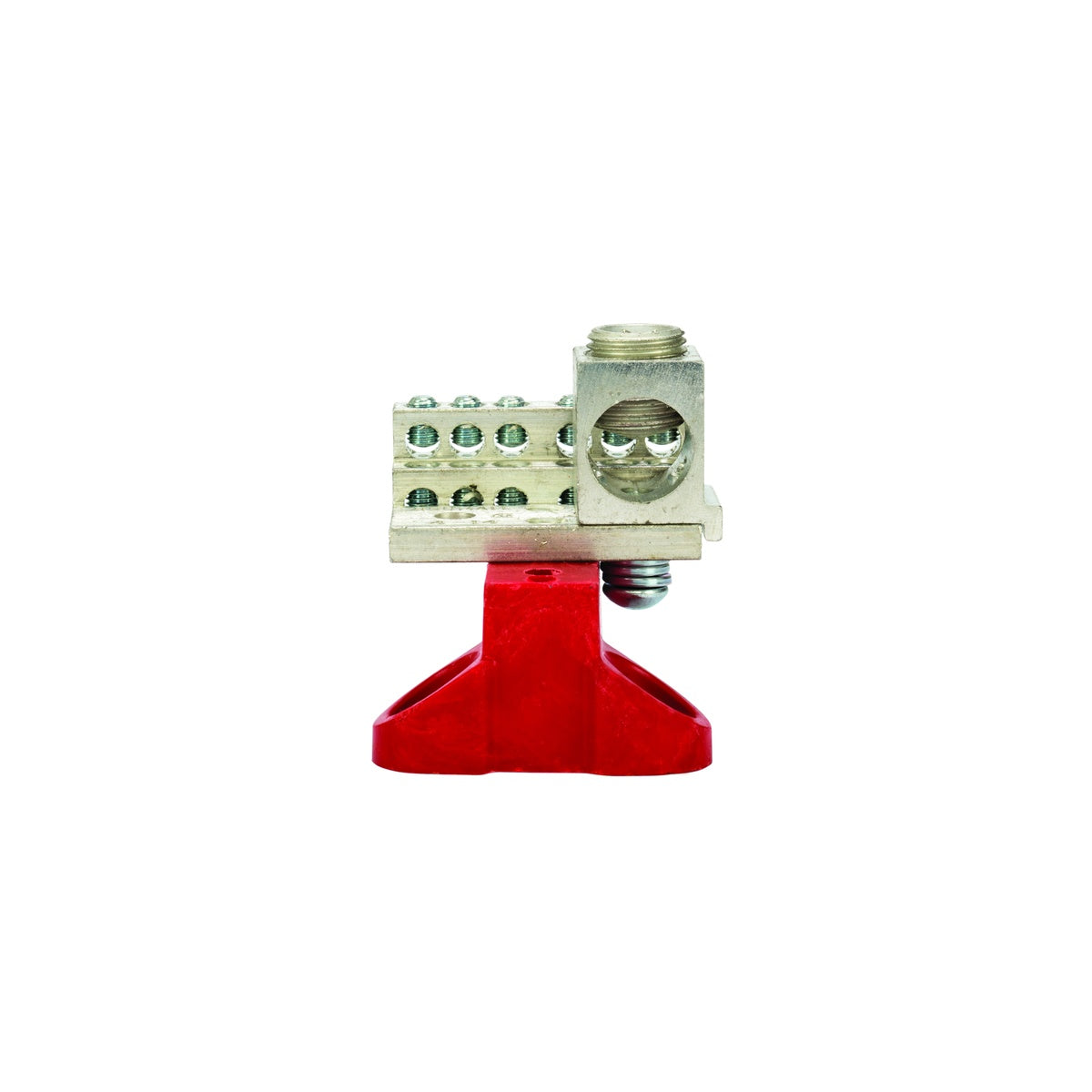

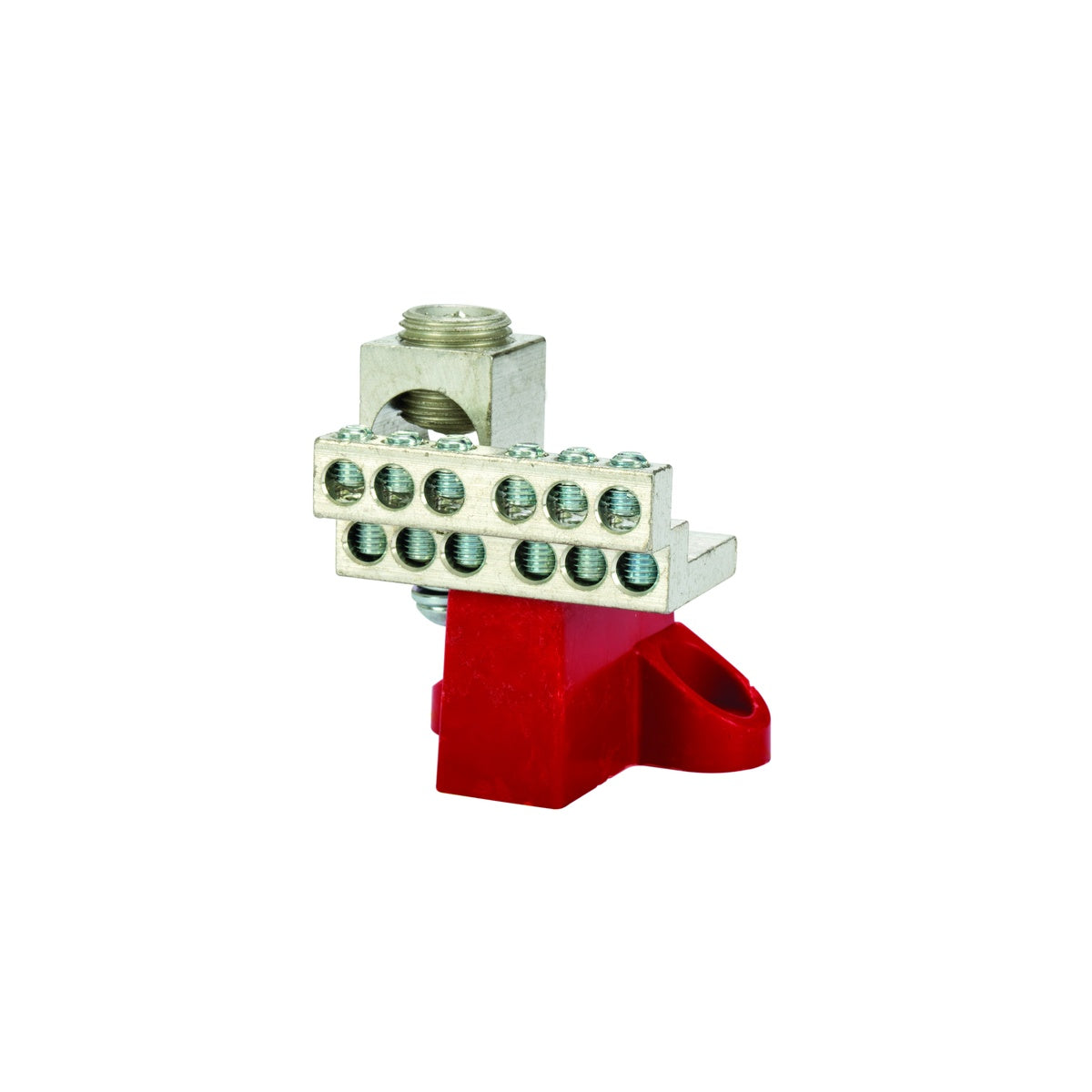

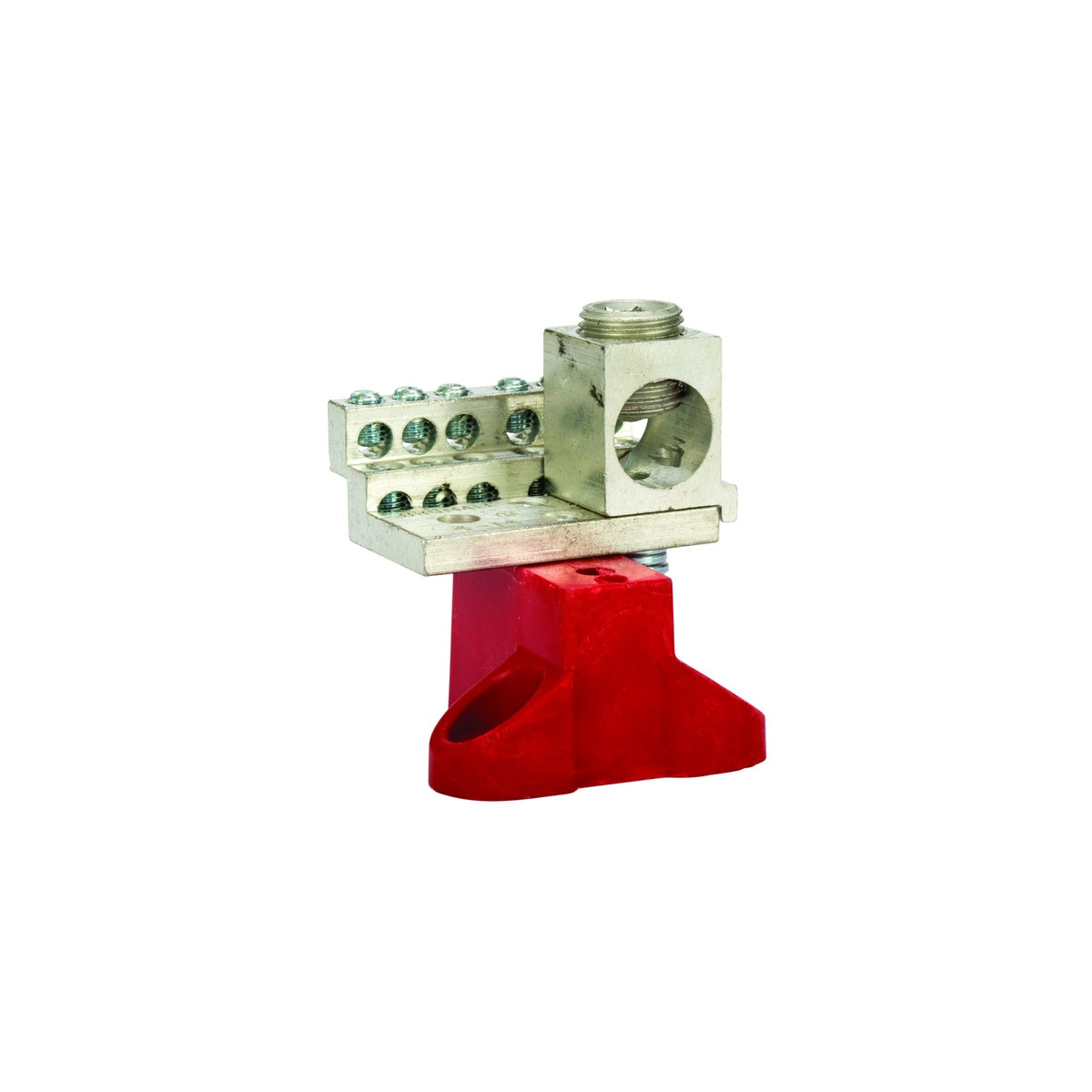

12 Crct Stked Neut C/W P1 Stacked Neutral Bar
This 225A stacked neutral bar is designed for wire termination applications, providing a compact and efficient solution for electrical distributors and switchgear suppliers. It accommodates 12 circuits with wire sizes from 4 to 14 AWG and includes a main lug sized for 350 MCM to 6 AWG conductors. Constructed with a mounting base, it is suitable for integration in lighting solutions, wire and cable assemblies, and electrical distribution systems.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: 1012MB
- Application: Wire Termination
- Conductor Size: (12) 4-14 AWG Circuits, (1) 350 MCM-6 AWG Main Lug
- Conductor Material: Aluminum
- Material: 6061T-6 Aluminum Alloy
- Dimensions: Length 2.193 in, Height 2.75 in, Width 2.25 in
- Product Weight: 0.32 lbs
- Order Minimum: 1
- Country of Origin: United States
- Made in USA: Yes
Features
- Compact stacked design minimizes width by stacking wire holes
- One-piece construction for superior mechanical performance
- High strength 6061T-6 aluminum alloy construction
- Includes 350 MCM main lug for heavy gauge conductor connection
- High strength, glass-filled polyester mounting base for isolated mounting
