12.8 Watt miniature; T5; 1000 Average rated hours; Mini Wedge base; 12.8 Volt
SKU: #262090
Part: #S6943
UPC: 045923069437
12.8 Watt miniature; T5; 1000 Average rated hours; Mini Wedge base; 12.8 Volt
SKU: #262090
Part: #S6943
UPC: 045923069437
Description

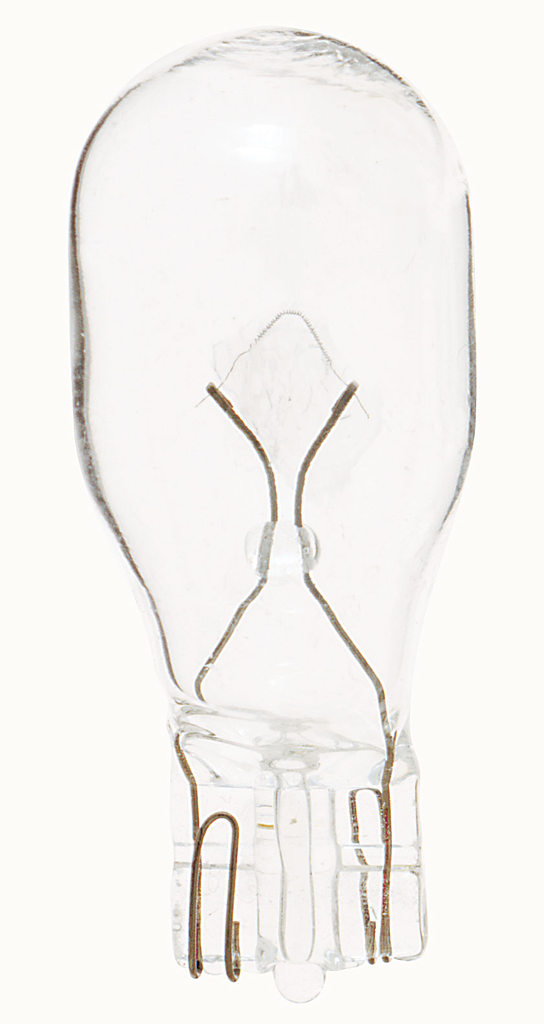

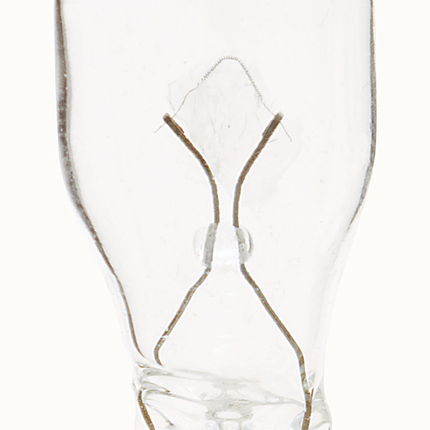

12.8 Watt Miniature T5 Incandescent Bulb
This 12.8 Watt miniature incandescent bulb with a T5 shape is designed for precise lighting applications requiring a mini wedge base. It operates at 12.8 volts and delivers a 360-degree beam spread, suitable for electrical distributors and lighting solutions requiring compact, clear illumination components. Ideal for use in wire and cable assemblies or as part of switchgear supplier inventory for replacement or new installations.
Specifications
- Wattage: 12.8 W
- Voltage: 12.8 V
- Shape: T5
- Filament: C-2R
- Base: Mini Wedge (ANSI W2.1x9.5d)
- Finish: Clear
- Beam Spread: 360°
- Average Rated Life: 1000 hours
- Amperage: 1.0 A
- Maximum Overall Length (MOL): 1.5 inches
- Maximum Overall Diameter (MOD): 0.63 inches
- Housing Color: None
- Lamp Type: Miniature Incandescent
- RoHS Compliant: Yes
- California Status: Lawful for sale
Features
- Clear finish for unobstructed light output
- 360-degree beam spread for uniform illumination
- Designed for use in electrical and lighting distributor applications
- Compact mini wedge base for easy installation in small fixtures
- Average rated life of 1000 hours supports maintenance scheduling
- Non-dimmable incandescent technology
- Complies with RoHS standards ensuring environmentally responsible manufacturing
