11824, Conduit Body - Aluminum Electrical Conduit Fitting

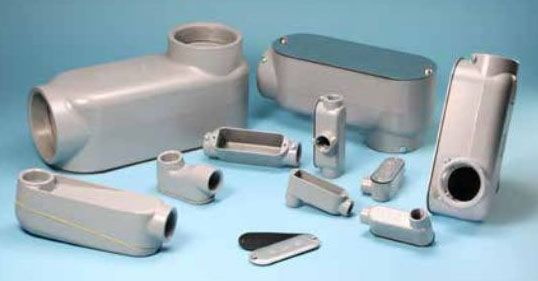

The 11824 Conduit Body by Mulberry Metal Products is a threaded conduit fitting designed for use with rigid and intermediate metal conduit (IMC) systems. It provides access points for wire pulling, splicing, and maintenance, making it suitable for electrical distributors and switchgear suppliers requiring durable conduit solutions. This conduit body is engineered to correct or change conduit run directions efficiently.

Specifications

• Material: Electrostatic Powder Coated Die-Cast Aluminum
• Installation: Threaded
• Hub Size: 1-1/4 inch
• Configuration: LR
• Internal Volume: 4.35 cubic inches
• Maximum Wire Size: 3 #2 AWG
• Dimensions (A x B x C): 7.76 in. x 2.48 in. x 2.68 in.
• Product Weight: 140 grams
• Standards: UL 514A, CSA C22.2 No. 18
• Certification: UL Listed, CSA Approved

Features

• Die-cast from high strength, corrosion and weather resistant aluminum alloy
• Smooth, tapered NPT threaded hubs for secure conduit connections
• Flat back design allows easy mounting close to walls
