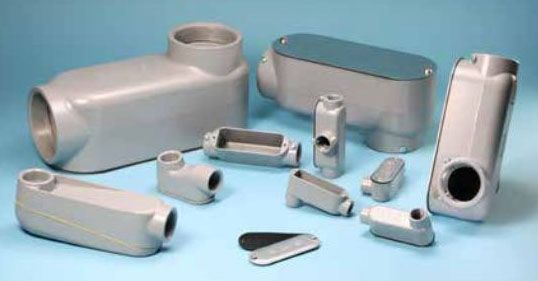

11816, Conduit Body – Electrical Conduit Fitting

The 11816 Conduit Body by Mulberry Metal Products is a threaded conduit fitting designed for use in electrical distribution and lighting solutions. It facilitates access to conductors for wire pulling, splicing, and maintenance, and enables 90-degree bends in conduit runs. Suitable for rigid conduit or IMC, it is an essential component for electrical distributors and switchgear suppliers requiring durable and reliable conduit fittings.

Specifications

• Material: Electrostatic Powder Coated Die-Cast Aluminum
• Installation: Threaded
• Product Weight: 260.0000 grams
• Manufacturer Part #: 11816
• UPC: 095327118163

Features

• Seamless die-cast aluminum construction with corrosion-resistant electrostatic powder coating
• Smooth, uniform NPT threads for quick installation
• Pre-assembled with neoprene rubber gasket and choice of steel or aluminum cover
• Combination Phillips/slotted screws with retaining washer installed
• UL Listed and CSA Approved
