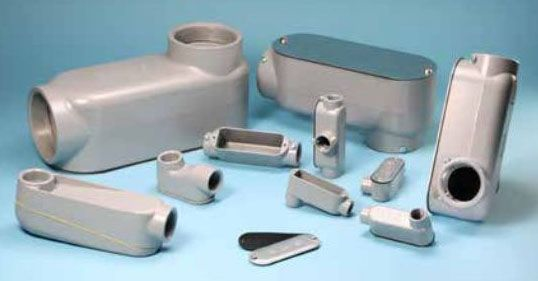

11814, Conduit Body – Aluminum Threaded Conduit Fitting

The 11814 Conduit Body is a threaded conduit fitting designed for use with rigid and intermediate metal conduit (IMC) systems. Manufactured by Mulberry Metal Products, this conduit body facilitates changes in conduit direction and provides access for wire pulling, splicing, and maintenance. It is suitable for electrical distributors and lighting solutions requiring durable wire and cable management components.

Specifications

• Material: Electrostatic Powder Coated Die-Cast Aluminum
• Installation: Threaded
• Hub Size: 1-1/4 inch
• Configuration: LL
• Internal Volume: 35.4 cubic inches
• Maximum Wire Size: 3 #2 AWG
• Dimensions: Length (A) 7.76 in., Height (B) 2.48 in., Width (C) 2.68 in.
• Product Weight: 1.4 lbs
• Standards: UL 514A, CSA C22.2 No. 18
• Certification: UL Listed, CSA Approved
• UPC: 095327118149

Features

• Die-cast from high strength, corrosion and weather resistant aluminum alloy
• Smooth, tapered NPT threaded hubs for secure conduit connection
• Flat back design allows easy mounting close to walls
• Provides access to conductors for wire pulling, splicing, and maintenance
• Compatible with rigid conduit and IMC
