11271, Square Box Cover – Tile Type Device Cover

The 11271 Square Box Cover by Mulberry Metal Products is a galvanized steel tile type device cover designed for electrical distributors and lighting solutions requiring durable and reliable wire and cable protection. It serves as a protective cover for 4-inch square electrical boxes, suitable for use in switchgear assemblies and other electrical installations.

Specifications

• Manufacturer Part #: 11271
• Material: Galvanized Steel

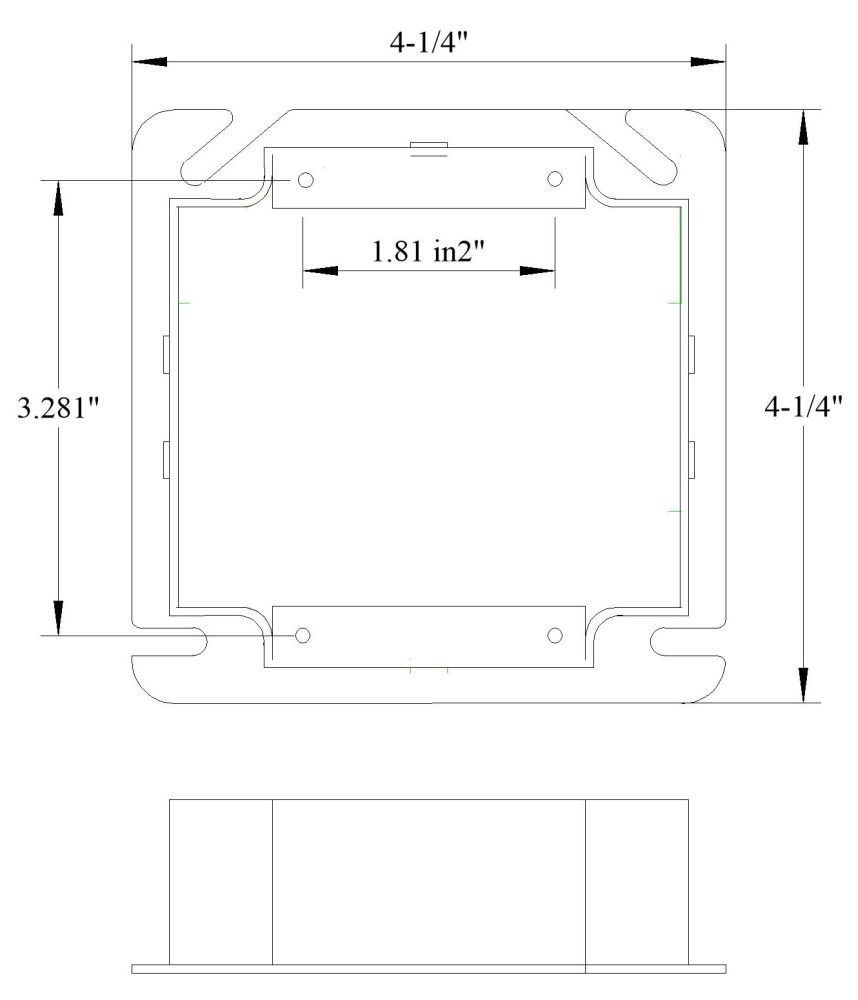

• Dimensions: 4-1/4" x 4-1/4" (overall), 3.281" internal depth
• Weight: 0.2700 lbs
• Device Type: 1 Device – 4" Square
• Raised Height: 1/2"
• UPC: 095327112710

Features

• Constructed from galvanized steel for corrosion resistance and durability
• Designed specifically for tile type device covers in 4-inch square electrical boxes
• Raised 1/2 inch profile to accommodate wiring and device clearance
• Made in the USA, ensuring compliance with quality manufacturing standards

Downloads & Links

• CAD Drawing
• Catalog
• Specification/Technical
