Description

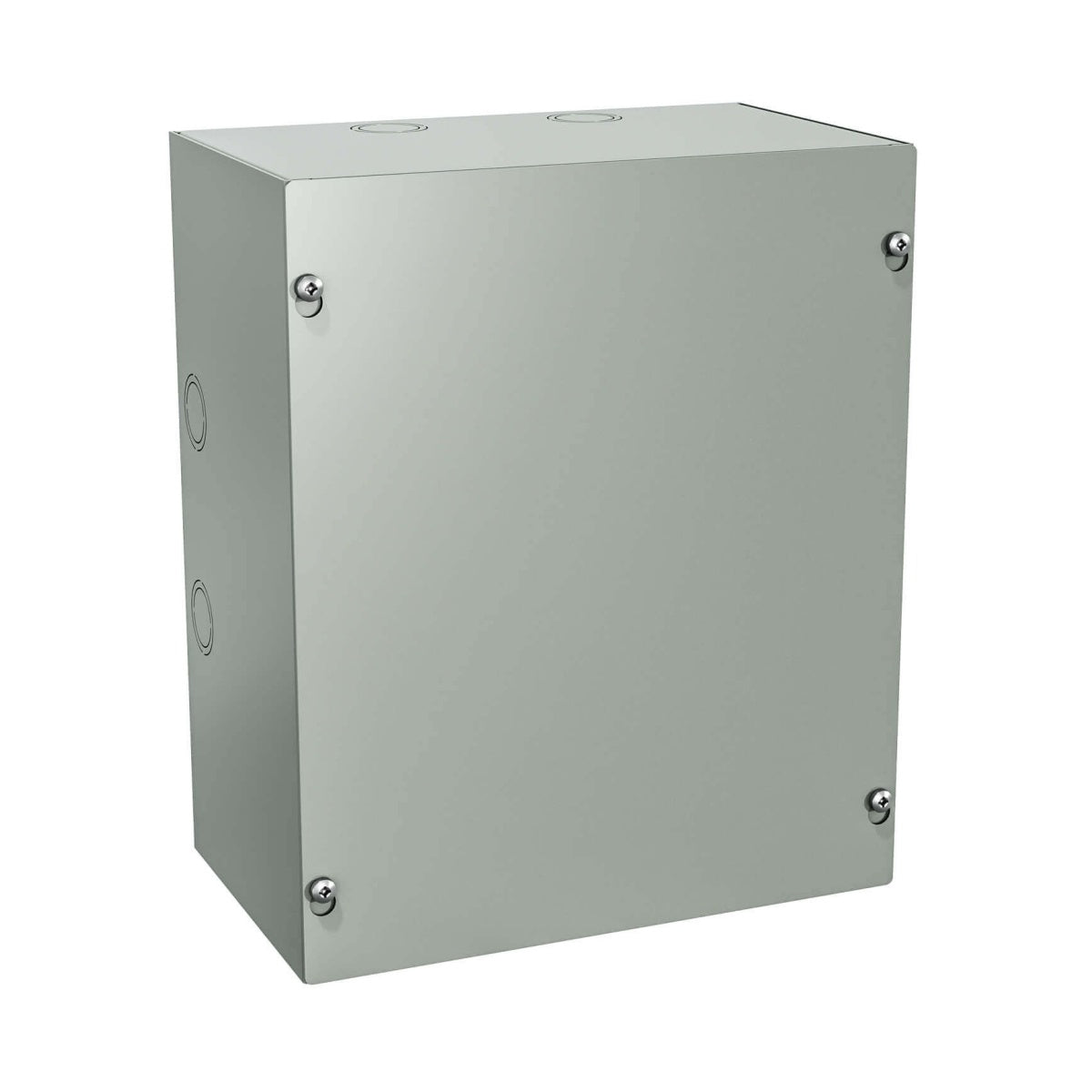

1100-DF101006 Pull/Junction Box – Electrical Enclosure
The 1100-DF101006 Pull/Junction Box is designed for applications where equipment does not require a high level of protection. This enclosure is suitable for electrical distributors and lighting solutions needing a reliable junction or pull box. Made of high-quality steel with a heat-fused finish, it is appropriate for wire and cable management in commercial and industrial settings where NEMA 1 protection is sufficient.
Specifications
- Material: Steel
- Finish: Heat Fused

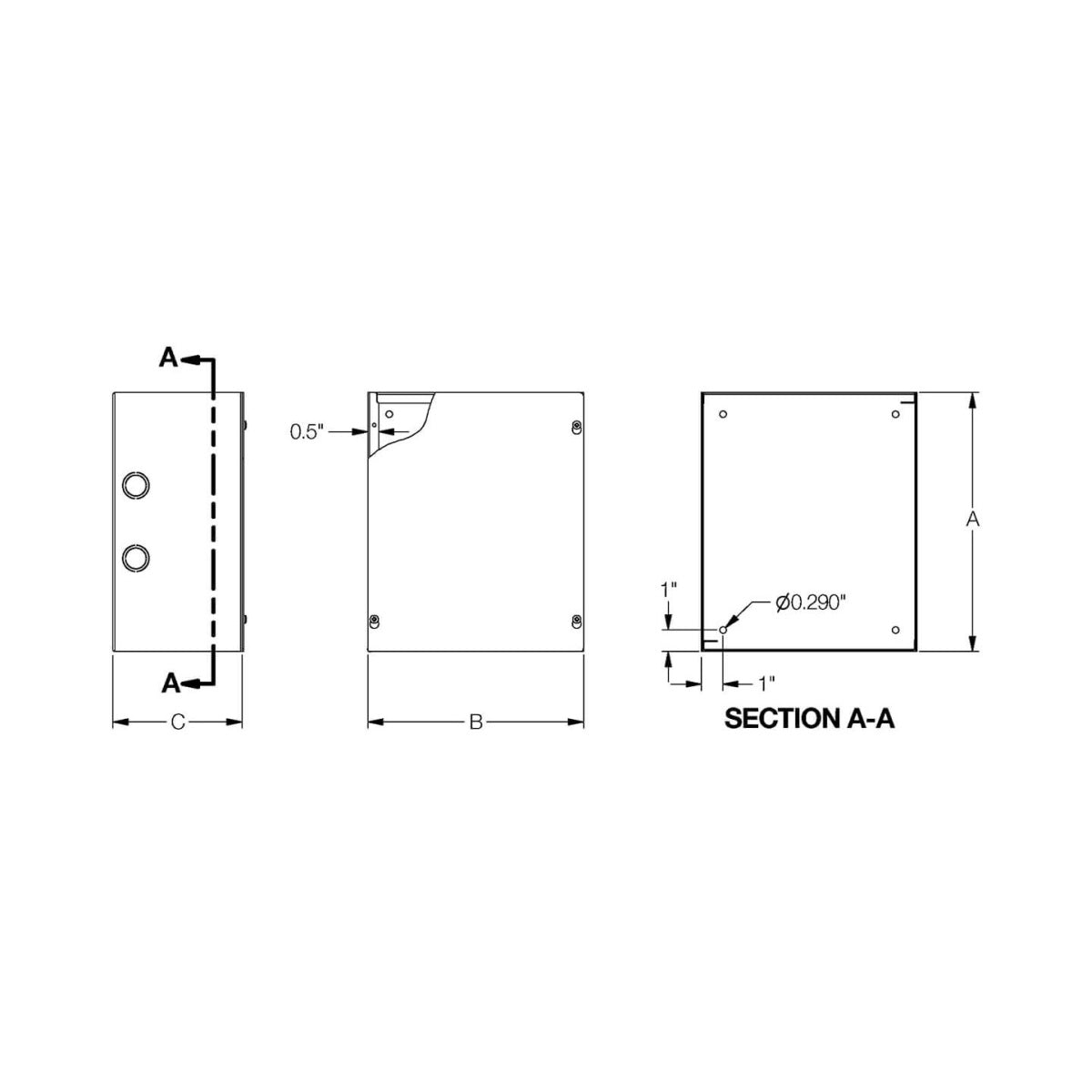

- Dimensions: 10 Inch (Height) x 10 Inch (Width)
- Weight: 7 lb
- Protection Rating: NEMA 1, IEC 60529 IP30
- Certification: CSA Certified
- Cover: Secured by screws
- Mounting: Mounting holes provided on back face
- Paint Color: ANSI/ASA 61 Smooth Gray
Features
- Constructed from high-quality steel for durability
- Cover secured with screws for secure enclosure
- Concentric knockouts for conduit entry
- Four internal mounting holes and bonding screw included
- Heat-fused powder paint finish applied electrostatically on pretreated base
