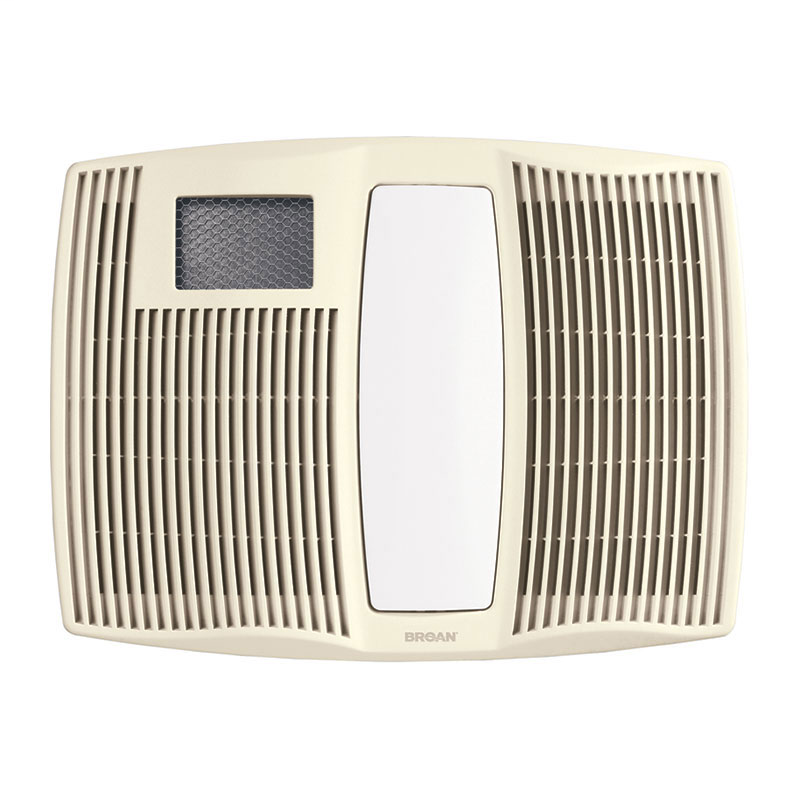

110 CFM Very Quiet Ventilation Fan with Heater and Fluorescent Light – Bathroom Ventilation Solutions

The Broan 110 CFM Very Quiet Ventilation Fan with Heater and Fluorescent Light is designed for efficient bathroom heating, ventilation, and lighting. This combination unit integrates a fan, heater, fluorescent lighting, and night light into a single ceiling-mounted solution, making it suitable for residential and commercial electrical distributors and lighting solutions providers. It offers controlled airflow, effective heat delivery, and energy-efficient illumination, ideal for use in insulated ceilings.

Specifications

• Manufacturer: Broan
• Model Number: QTX110HFLT
• Airflow Rate: 110 cubic feet per minute
• Amperage: 13.5 amperes
• Duct Size: 6 inches (round)
• Light Type: Fluorescent
• Bulb Included: Yes
• Grille Width: 15 inches
• Grille Length: 20 inches
• Housing Width: 11-3/8 inches
• Housing Height: 7-5/8 inches
• Product Weight: 22.8 lbs
• Voltage: 120 volts
• Sound Level: 0.9 sones
• Heater Power: 1500 watts fan-forced heat

Features

• Combination unit with fan, heater, fluorescent light, and night light, all separately controllable
• Energy-efficient lighting using (2) 18W high-efficiency GU24-based fluorescent lamps (included)
• PowerHeat‚Ñ¢ design ensures efficient energy conversion and heat delivery
• Low sound operation with resilient anti-vibration mounts and permanently lubricated motor
• Rugged galvanized steel housing suitable for insulated ceilings (Type I.C.)
• Adjustable mounting brackets for installation in 2" x 8" nominal joists, spanning up to 24 inches
• Polymeric 6" round damper/duct connector with tapered sleeve to reduce metallic clatter
• UL listed and HVI certified for airflow and sound performance
• Suitable for ceiling installation up to 12/12 pitch and optimal comfort in ceilings 9 feet high or less

Downloads & Links

• Spec Sheet QTX110HFLT
• Wall Controls Selection Guide
• Broan Bath and Ventilation Fans Catalog
• Installation Guide QTX110HFLT
