Features

• Knurled edge on punches for better grip
• Knockout set features new die design optimized for widest range of materials and drivers
• Laser markings for quick part identification. Alignment markings for improved accuracy.
• Easy threading - draw studs with "dog point" tip helps eliminate cross-threading. Hex key access for easy removal from tool.
• Compatibility - Works with all Greenlee knockouts. Same draw studs used with Intelli-PUNCH™, LS50L2 and 746A ram
• Punches, dies, draw studs and case made in the USA
• Driver manufactured in the USA from US and global components
• 1/2" - 2" conduit size Slug-Buster® punches
• 2-1/2" - 4" conduit size Standard Round punches
• 1/2" - 4" conduit size dies
• 7/16" hydraulic draw stud
• 3/4" hydraulic draw stud
• 1-1/8" hydraulic draw stud

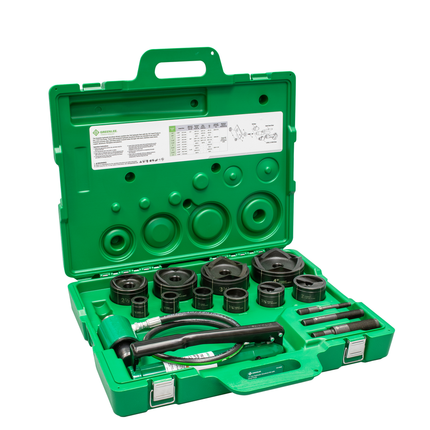

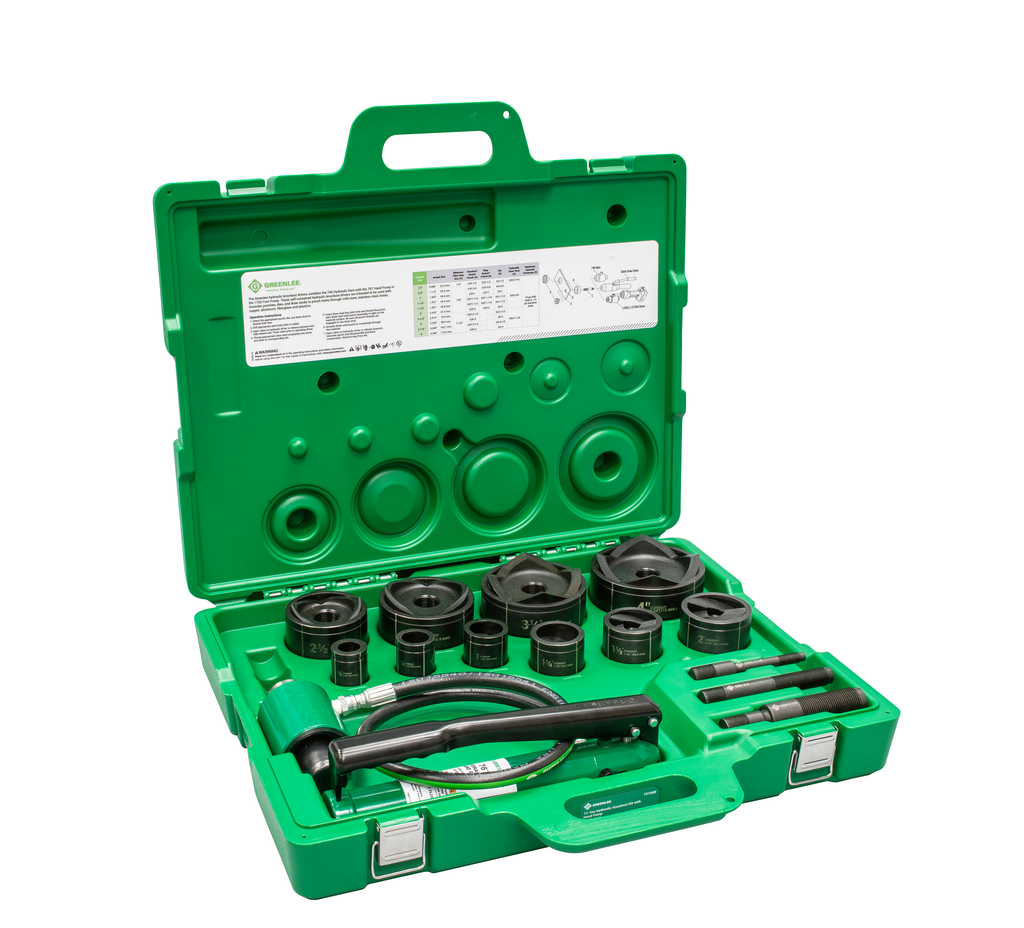

• KCC-7674 carrying case

Application

• For punching holes in mild steel, stainless steel, aluminum, brass, copper, fiberglass and plastics

Specifications

• Country of Origin: United States
• Shape: Round

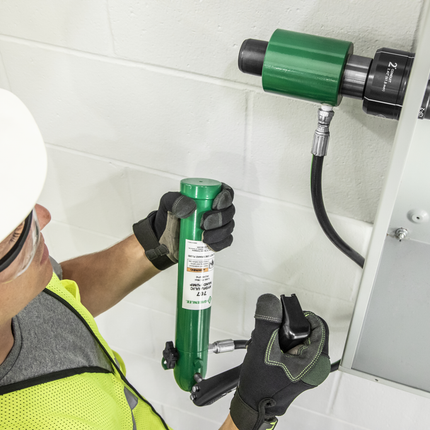

• Type: 11-Ton Hydraulic Knockout Kit with Hand Pump
• Size: 1/2" - 4" conduit size knockouts (hole size - 0.89" - 4.54" or 22.5 mm - 115.4 mm)
• Material: Punch up to 10 ga mild steel or 12 ga stainless steel

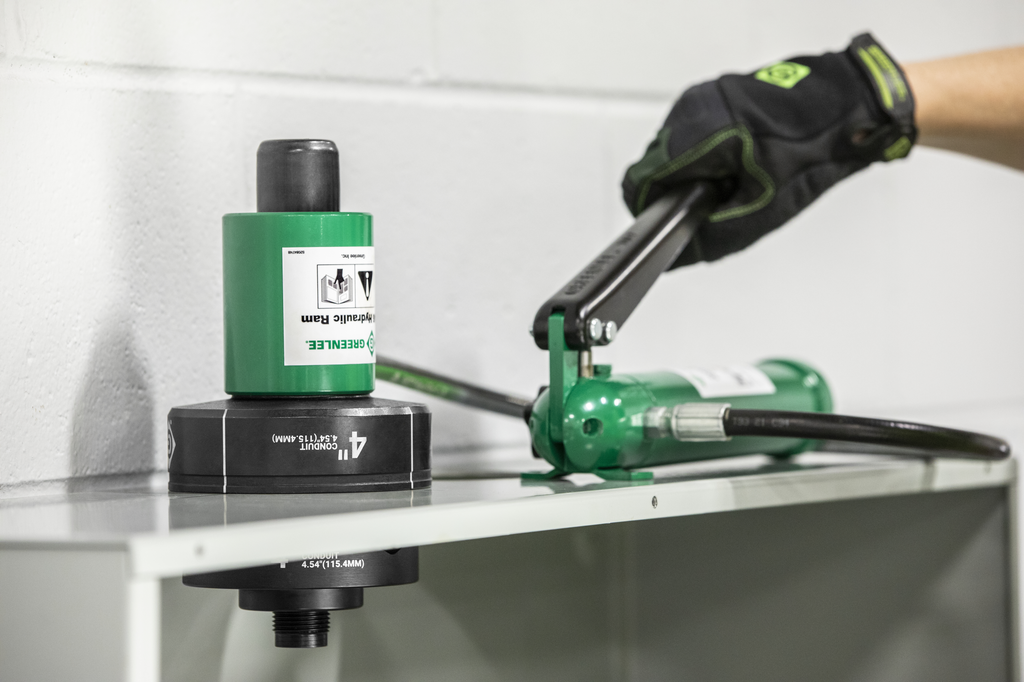

• Consists Of: 746A Ram and 767 Hand Pump

Regulations

• REACH Compliant: Yes
