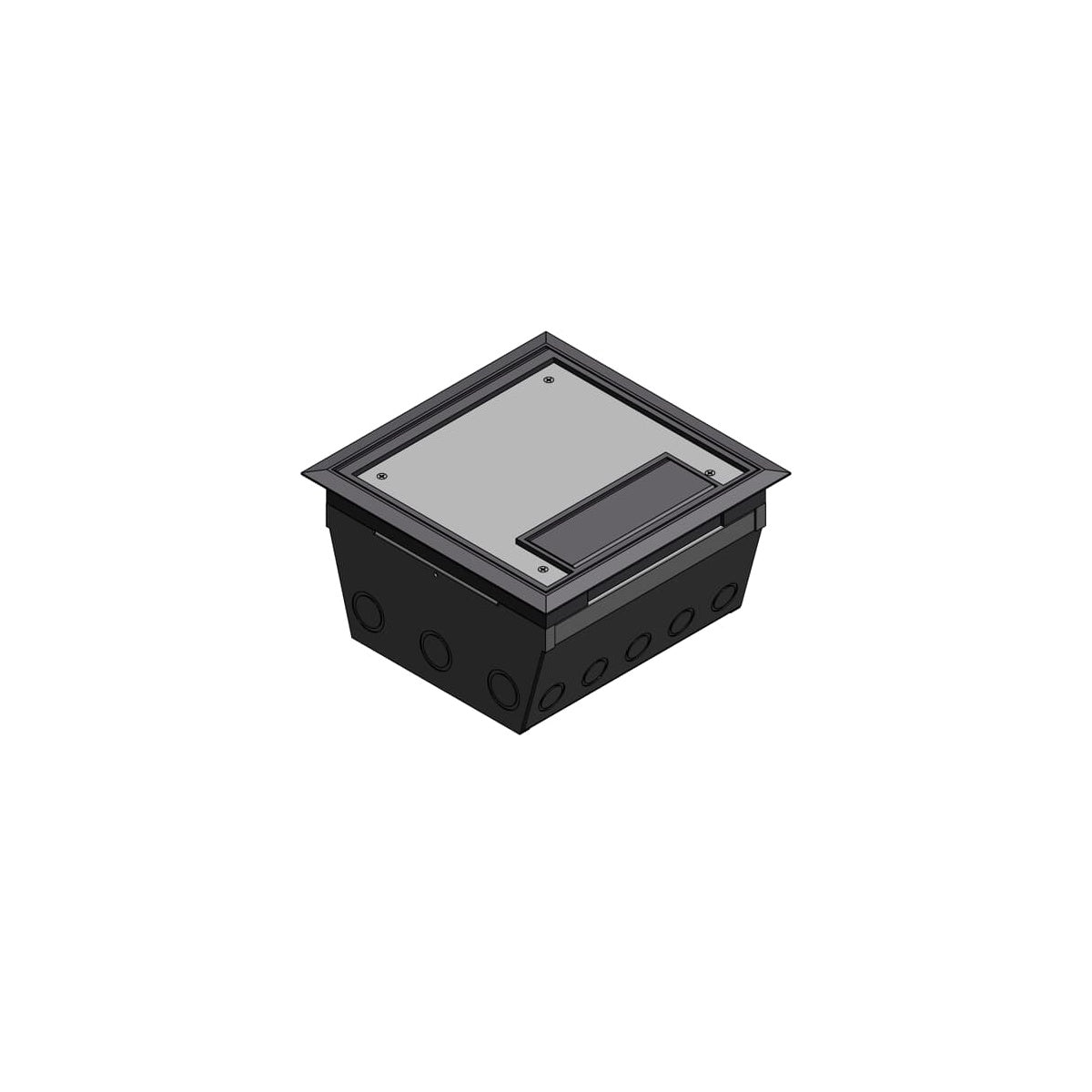

10COMP RAISED ACC FLR-MOD 325CU GRY Access Floor Module

This 10-compartment raised access floor module is designed for electrical distributors and switchgear suppliers requiring versatile underfloor wiring solutions. Suitable for use with most types of raised floors, including ridged or waffled floor panels, carpet, or tile, it facilitates organized distribution of power and data wiring in commercial and industrial environments.

Specifications

• Material: Galvanized Steel
• Color: Gray
• Box Volume: 325 cu in
• Floor Cut Out Size: 9-5/8" Length x 9-5/8" Width
• Cover Size: 9-3/8" Length x 9-3/8" Width
• Depth: 5-5/8"
• Number of Knockouts: 16
• Maximum Number of Device Panels: 10
• Weight: 10.75 lbs
• Standards: UL E75944 certified

Features

• Accepts up to 10 device panels for power and data wiring
• Each compartment can be partitioned for combined power and data use
• Compatible with various raised floor types including carpet and tile
• Durable 14-gauge galvanized steel construction for longevity
• Gray polycarbonate cover with dust-sealed retractable exit
• Prewiring options available to facilitate installation
