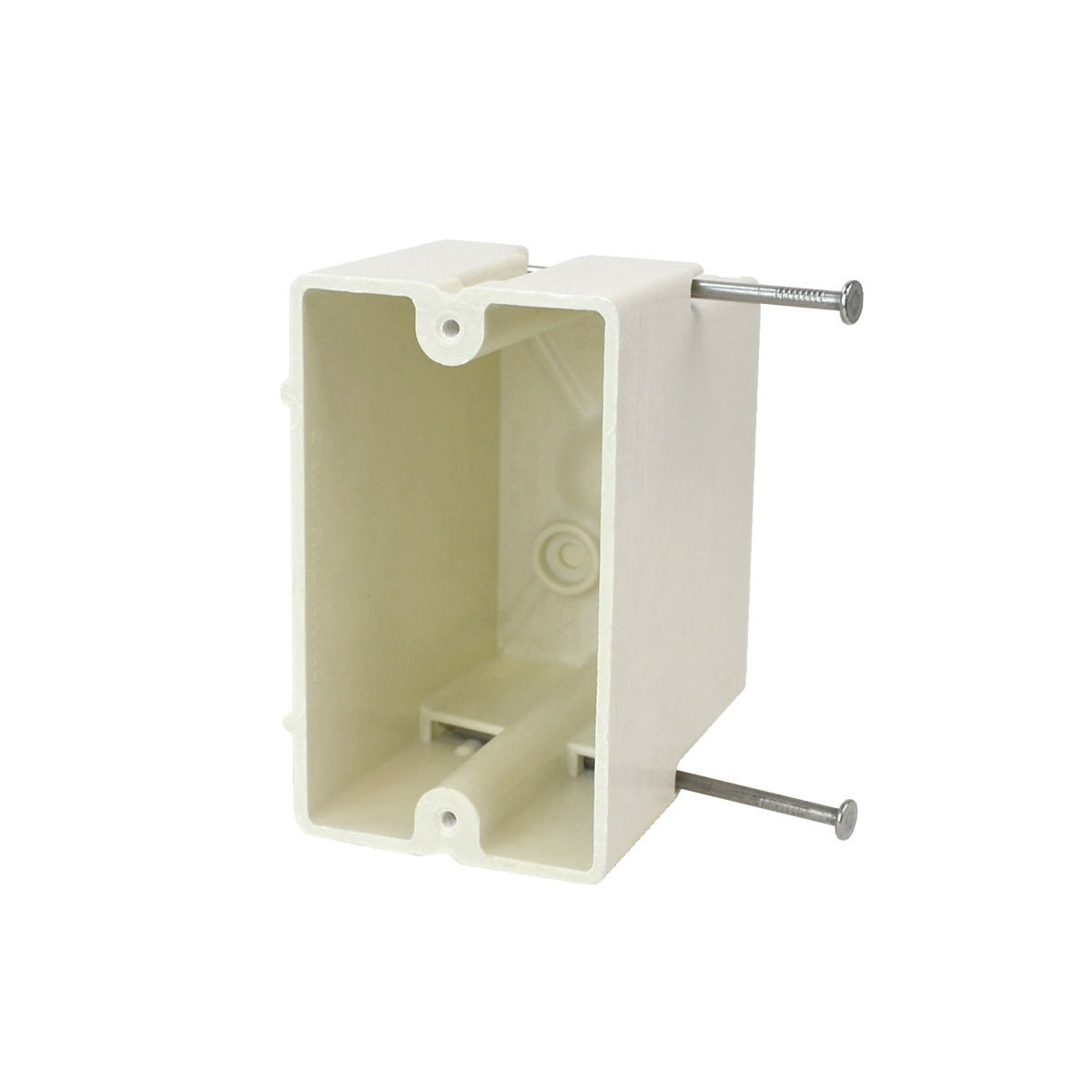

1098-N Single Gang Electrical Box for Wire and Cable

The 1098-N is a single gang electrical box designed for use with nonmetallic sheathed cable in new work installations. Manufactured by Allied Moulded, this receptacle box is made from fiberglass reinforced polyester, providing durability and fire resistance. It is suitable for electrical distributors and lighting solutions requiring reliable and code-compliant outlet boxes.

Specifications

• Box Type: Receptacle
• Material: Fiberglass Reinforced Polyester
• Color: White
• Number of Gangs: 1
• Depth: 3 1/4 inches
• Width: 2-1/4 inches
• Height: 3-13/16 inches
• Installation: New Work
• Product Weight: 34 lbs
• Carton Quantity: 100
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part #: 1098-N
• Volume: 20.5 cubic inches

Features

• UL listed with 2-hour fire rating for wall and ceiling applications
• Constructed from durable fiberglass reinforced polyester for enhanced strength and fire resistance
• Includes plated carbon steel nails for secure installation
• Designed for use with nonmetallic sheathed cable
• Offset rib design for precise substrate offset

Downloads & Links

• Spec Sheet
