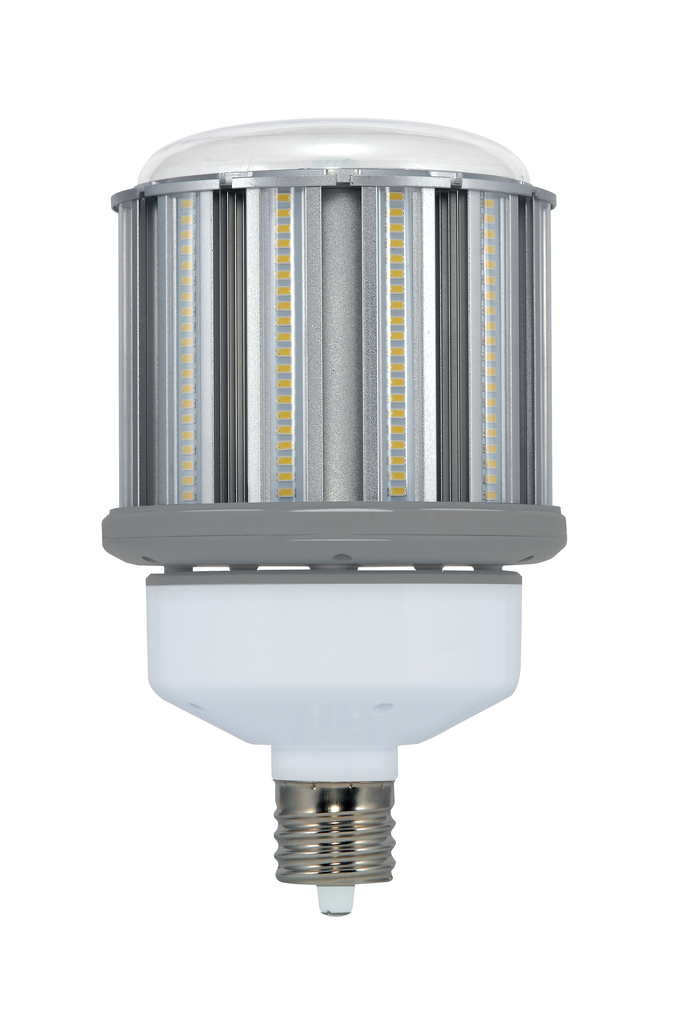

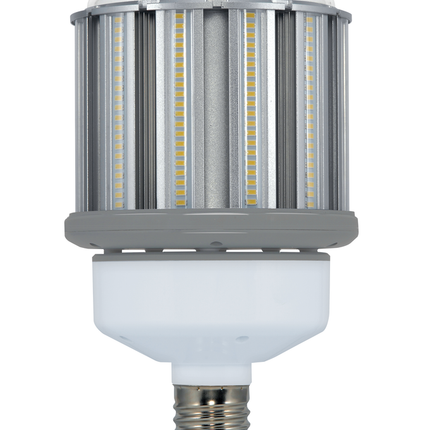

100 Watt LED HID Replacement - Satco Lighting Solutions

This 100 Watt LED HID Replacement lamp by Satco is designed for industrial and commercial lighting applications, offering a reliable alternative to traditional HID lamps. It features a mogul extended base and operates on a voltage range of 100-277 volts, making it suitable for a variety of fixtures. The lamp delivers natural light at a 5000K color temperature, producing 13,300 lumens with an efficient beam spread of 300 degrees. Classified under UL 1598C, it is approved for use in totally enclosed fixtures and rated for both indoor and outdoor environments with an IP65 rating. This product supports electrical distributors and switchgear suppliers seeking durable, high-performance LED lighting solutions with long service life and robust thermal management.

Specifications

• Manufacturer: Satco
• Manufacturer Part #: S29396
• Wattage: 100W
• Incandescent Equivalent: 500W
• Voltage: 100-277V
• Color Temperature: 5000 Kelvin (Natural Light)
• Lumens: 13,300
• Beam Spread: 300°
• Base Type: Mogul Extended (EX39)
• Finish: Clear
• Lens Color: Clear
• IP Rating: IP65
• Rated Life: 50,000 hours
• Operating Temperature Range: -20°C to +40°C (-4°F to +104°F)
• Operating Frequency: 50-60 Hz
• Power Factor: 0.9
• Dimmable: No
• Weight: 3.64 lbs
• Safety Listing: cULus
• Location Rating: Wet
• DLC Approved: Yes
• Ballasting Requirements: Ballast Bypass - Direct Wire Only
• Burning Position: Up or Down Operation Only

Features

• High lumen output with 13,300 lumens for enhanced illumination
• Long rated life of 50,000 hours reduces maintenance and replacement costs
• Built-in surge protection up to 5KV for electrical reliability
• Thermal management circuit design to maintain optimal operating temperature
• UL approved for use in totally enclosed fixtures
• Suitable for indoor and outdoor use with IP65 rating
• Emits no UV light and contains no mercury
• Includes safety chain for secure installation

Downloads & Links

• Spec Sheet
