Specifications

Electrical Specifications

• Amperage: 100 A
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: 3000V for 1 min.
• Endurance: Up to 250 connects and disconnects, under load, at full rated current and voltage
• Insulation Resistance: 500V for 1 min; >= 5MΩ
• Phase: 3-Phase
• Pole: 3
• Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
• Voltage: 480 VAC
• Wire: 4

Environmental Specifications

• Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
• Flammability: Rated V-0 per UL 94
• IP Rating: IP67/IP69K
• Moisture Resistance: Per UL 1682, immersed for 24 hours in 5cm of 25°C water

Material Specifications

• Arm Spring: Performance Grade Stainless Steel
• Body Material: Valox 357
• Cover Eyelet: Nickel-Plated Brass
• Cover with Arm: Valox 357
• Gasket Material: Chloroprene
• Mounting Flange: Valox 357
• Phase and Ground Sleeves: Brass
• Sleeve Spring: Stainless Steel
• Terminal Screws: Stainless Steel

Mechanical Specifications

• Crush Test: 250lbs for 1 min after -25°C for 6 hrs
• Impact Resistance: Drop from 30" 8 times after conditioning to -25°C for 6 hrs
• Minimum Withdrawal Force: 20lbs

Product Features

• Color: Red
• Configuration: North American

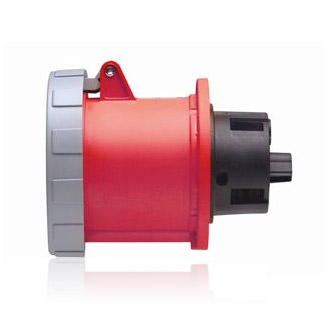

• Device Type: Receptacle
• Series: Standard Series

Standards and Certifications

• CE Marking: Per low voltage directives 73/23/EEC, 93/68/EEC
• CSA Certified: C22.2 No 182.1
• IEC Rating: 60309-1 and 60309-2
• UL Listed: 1682 and 1686
• Warranty: 2-Year Limited
