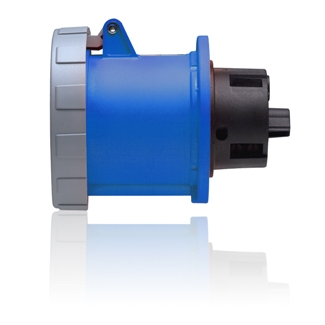

100 Amp, 250 Volt 3-Phase, 3P, 4W, Outlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - BLUE
SKU: #13559
Part: #4100R9W
UPC: 078477837764
100 Amp, 250 Volt 3-Phase, 3P, 4W, Outlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - BLUE
SKU: #13559
Part: #4100R9W
UPC: 078477837764
Description
100 Amp, 250 Volt 3-Phase 3P 4W Industrial Grade Watertight Receptacle - Electrical Distributor Lighting Solutions
This 100 Amp, 250 Volt, 3-Phase, 3P, 4W North American Pin & Sleeve Receptacle is designed for industrial applications requiring durable and watertight electrical connections. Manufactured by Leviton, this receptacle is rated IP67 for watertight protection, suitable for demanding environments. It is constructed from Valox 357 material, ensuring high durability and compliance with flammability class V-0 per UL 94. This device is ideal for use by electrical distributors and switchgear suppliers as part of comprehensive wire and cable and lighting solutions.
Specifications
- Manufacturer: Leviton
- Manufacturer Part #: 4100R9W
- Amperage: 100 amperes
- Voltage: 250 volts
- Phases: 3-Phase
- Poles: 3
- Wires: 4
- Device Type: Receptacle
- Body Material: Valox 357
- Color: Blue
- Dielectric Strength: 2000 volts
- Flammability Class: Rated V-0 per UL 94
- Product Weight: 2.0 lbs
- UPC: 078477837764
Features
- Industrial grade construction for reliable performance in harsh environments
- Watertight design with IP67 rating to prevent ingress of water and dust
- Complies with IEC standards 309-1 and 309-2 for pin and sleeve devices
- Designed to prevent improper mating with non-IEC devices for enhanced safety
- Suitable for use with copper or copper-clad wire only
- Includes neoprene grommet and cable clamp for secure cable retention
- Rated for 100 Amp continuous current carrying capacity
- Flammability rated V-0 per UL 94 for fire resistance
