10 Watt miniature; T5; 2000 Average rated hours; 126 Lumens; Mini Wedge base; 24 Volt
SKU: #262136
Part: #S6980
UPC: 045923069802
10 Watt miniature; T5; 2000 Average rated hours; 126 Lumens; Mini Wedge base; 24 Volt
SKU: #262136
Part: #S6980
UPC: 045923069802
Description

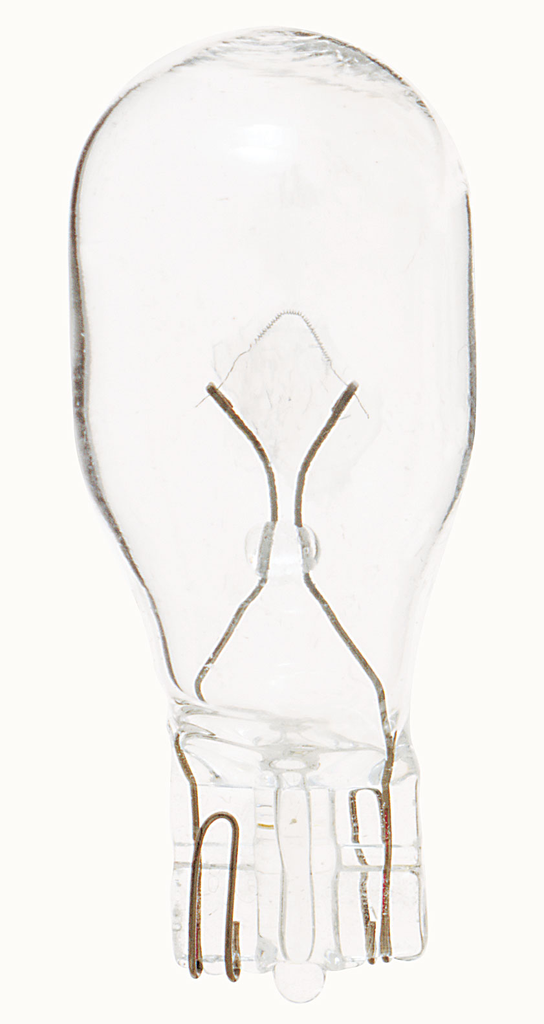

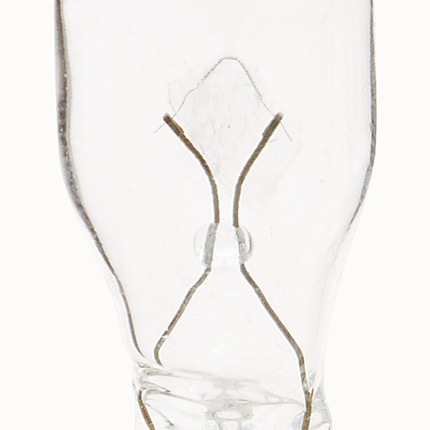

10 Watt miniature T5 Incandescent Lamp for Lighting Solutions
This Satco S6980 10 Watt miniature T5 incandescent lamp is designed for use in electrical distributor applications requiring reliable wire and cable lighting components. Featuring a mini wedge base and operating at 24 volts, it provides consistent illumination with a clear finish and lens color. Suitable for various lighting solutions, this lamp delivers 126 lumens with a 360-degree beam spread and is intended for use in switchgear and other electrical equipment requiring compact, low-wattage incandescent lamps.
Specifications
- Manufacturer: Satco
- Manufacturer Part #: S6980
- Wattage: 10W
- Voltage: 24V
- Shape: T5
- Base: Mini Wedge (ANSI Base W2.1x9.5d)
- Finish: Clear
- Lumens: 126 lumens
- Beam Spread: 360°
- Average Rated Life: 2000 hours
- Amperage: 0.42 amperes
- Lamp Type: Miniature Incandescent
- Maximum Overall Length (MOL): 1.5 inches
- Maximum Overall Diameter (MOD): 0.63 inches
- RoHS Compliant: Yes
- Energy Star: No
- California Status: Lawful for sale
Features
- Clear lens and finish for optimal light transmission
- 360-degree beam spread for uniform illumination
- Mini wedge base for easy installation in compatible sockets
- Incandescent technology providing consistent light output
- Average rated life of 2000 hours for dependable performance
- Designed for use in electrical distributor and lighting solution applications
- RoHS compliant ensuring adherence to environmental standards
- Compact size suitable for wire and cable lighting and switchgear supplier requirements
