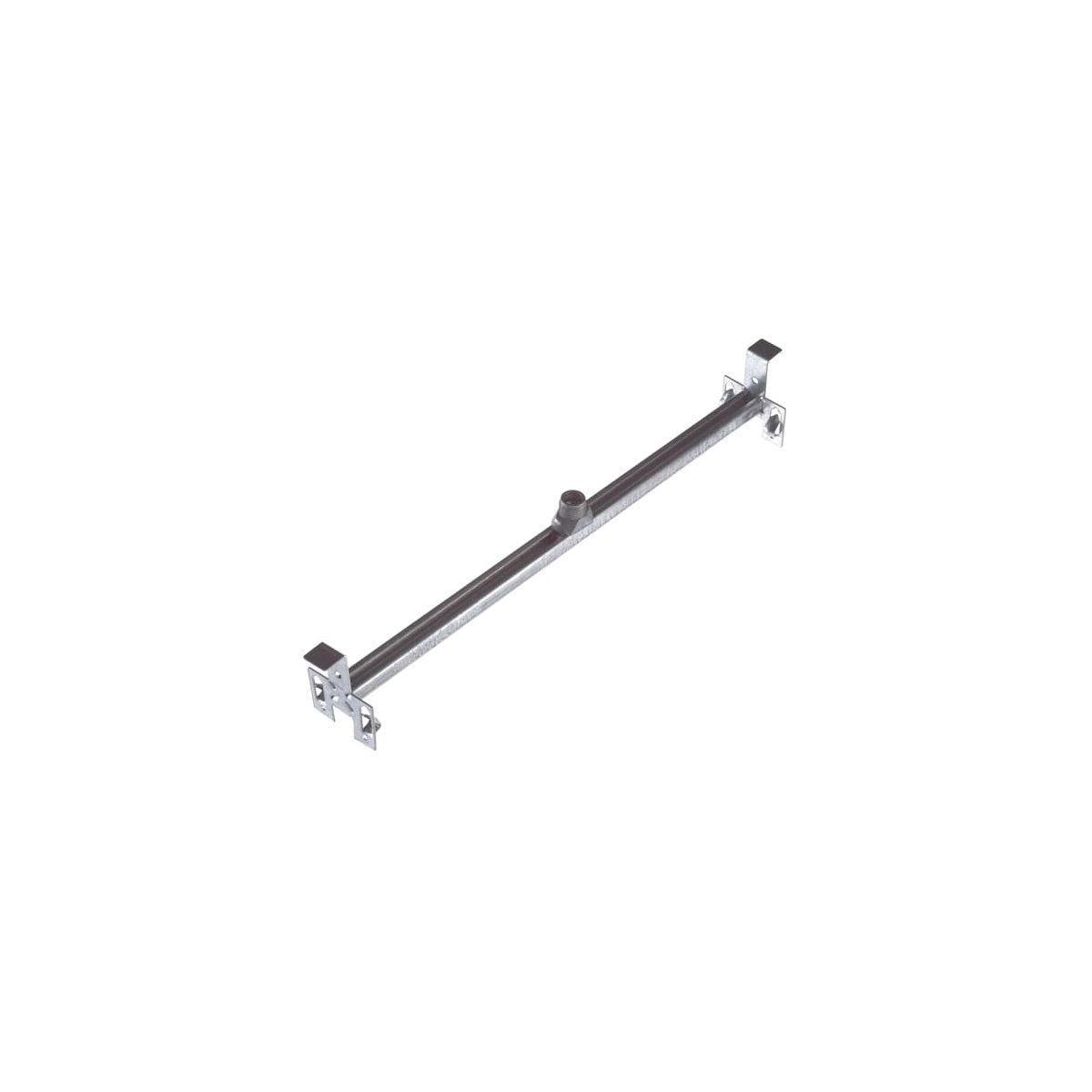

10-1/2IN-18-1/2IN Bar Hanger with Stud – Adjustable Bar Hanger for Drywall and Plaster

This adjustable bar hanger is designed for use with 3/8 inch, 1/2 inch, and 5/8 inch wall board and plaster applications. It provides reliable support for electrical boxes in drywall and plaster walls, making it suitable for electrical distributors and switchgear suppliers managing wire and cable installations. The bar hanger is packaged complete with a stud and features score marks for drywall and plaster depths to ensure accurate installation.

Specifications

• Length: 10-1/2 inches to 18-1/2 inches
• Depth: 1-3/16 inch
• Maximum Load Capacity: 50 pounds (22.7 kilograms)
• Material: Steel
• Color: Silver
• Application: For use with 3/8 inch, 1/2 inch & 5/8 inch wall board and plaster
• Product Weight: 12.1 lbs
• Standards: UL E13938, CSA 12798

Features

• Adjustable length accommodates various wall thicknesses
• Score marks for precise drywall and plaster depth alignment
• Claws provide temporary support for proper positioning until permanently installed
• Packaged complete with stud for ease of installation
• Durable steel construction with silver finish for corrosion resistance
