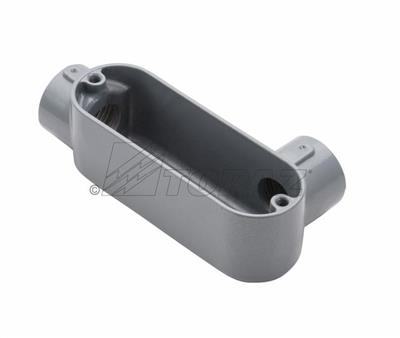

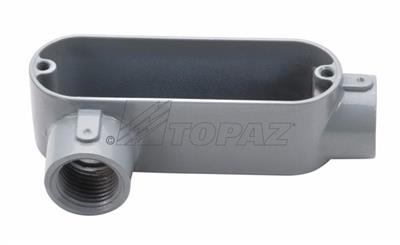

1" Threaded LR Type Rigid Conduit Body
SKU: #190338
Part: #LR3
UPC: 751338212602
1" Threaded LR Type Rigid Conduit Body
SKU: #190338
Part: #LR3
UPC: 751338212602
Next day delivery
Description
1" Threaded LR Type Rigid Conduit Body – Electrical Conduit Solutions
The 1" Threaded LR Type Rigid Conduit Body is designed to provide access to conductors for pulling, splicing, and maintenance. It is suitable for use in concrete and wet locations, making it an ideal component for electrical distributors and lighting solutions requiring durable wire and cable management. Manufactured with die cast aluminum and featuring NPT tapered hubs, this conduit body supports reliable conduit system installations and maintenance.
Specifications
- Name: 1" Threaded LR Type Rigid Conduit Body
- Hub Size: 1"
- Material: Die Cast Aluminum
- Mounting: Wall Mount
- Form: LR
- Width: 2.65 in
- Height: 1.9 in
- Length: 5.915 in
- Product Weight: 0.4780 lbs
- Manufacturer Part #: LR3
- UPC: 751338212602
Features
- Threaded LR type with NPT tapered hubs
- Suitable for use in concrete and wet locations
- Provides easy access for conductor pulling, splicing, and maintenance
- Copper-free aluminum die cast construction for corrosion resistance
- Powder coat finish for enhanced durability
