1" Stubby Auger Wood Bit - Electrical Distributor Tool

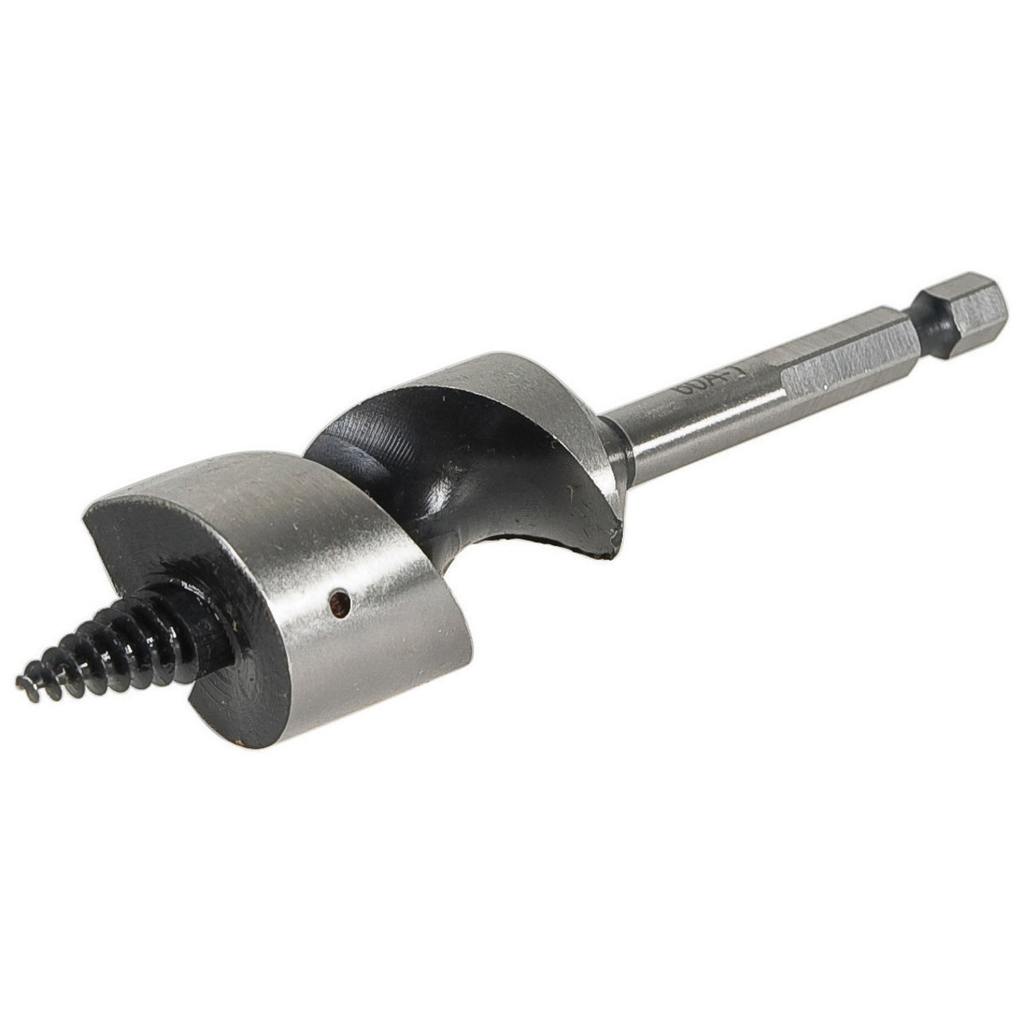

The 1" Stubby Auger Wood Bit by Greenlee is designed for efficient wood drilling applications, ideal for electrical distributors and switchgear suppliers requiring precise holes in wood joists and studs. Its compact, stubby design provides superior access in tight spaces, making it suitable for lighting solutions installation and wire and cable routing through wood structures.

Specifications

• Diameter: 1 inch (25.4 mm)
• Overall Length: 8.0 inches (209.5 mm)
• Width: 3.6 inches
• Height: 0.3 inches
• Product Weight: 0.32 lbs
• Manufacturer: Greenlee
• Manufacturer Part Number: 52045030
• Country of Origin: China

Features

• Over center single flute design for cleaner holes and reduced splintering
• Unique cutting edge for fast, smooth cutting action
• Shorter length for better access to tight spaces between studs and joists
• Self-feeding screw point draws bit through all wood types with less operator fatigue
• Eliminates need for special tools such as right angle drills
• 1/4" hex quick change design compatible with all drill types for fast bit changes
• Clearly marked with bit diameter and catalog number on shank for easy identification
