1 Screw Set Screw Type Duplex Connector
SKU: #174266
Part: #370TZ
UPC: 751338135901
1 Screw Set Screw Type Duplex Connector
SKU: #174266
Part: #370TZ
UPC: 751338135901
Total Price: $1.02 per each Sold in increments of 1 each
Next day delivery
Description

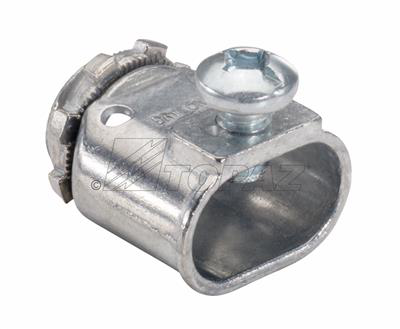

1 Screw Set Screw Type Duplex Connector for Flexible Metal Conduit
This 1 Screw Set Screw Type Duplex Connector by Southwire is designed for secure connection of BX-FLEX, NM, and MC cables to boxes or enclosures in interior, dry locations. It is suitable for electrical distributors and lighting solutions requiring reliable fittings for wire and cable installations. The connector features a 3/8” size with a 1/2” knockout, fabricated from corrosion-resistant die cast zinc, and fits aluminum smooth extruded MC cable ranging from .210 to .500 inches. It includes a male NPT hub and is UL listed for safety compliance.
Specifications
- Material: Die Cast Zinc
- Connection: 1 Set Screw
- Size: 3/8”
- Knockout Size: 1/2”
- Fits MC Range: .210 to .500 inches
- Weight: 0.1010 lbs
- Manufacturer Part #: 370TZ
- UL Listed
Features
- One set screw type assembly for secure conduit connection
- Corrosion resistant zinc die cast construction
- Male NPT hub for easy installation
- Compatible with BX-FLEX, NM, and MC cables
- Designed for indoor dry location use
