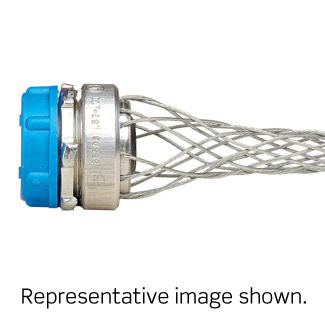

1 Inch, Straight, Male, Anodized Aluminum Body, Wide-Range Strain-Relief Grip

Leviton 1 Inch Wide-Range Strain Relief Grip is designed for secure wire management applications, providing strength and reliability for pulling, supporting, and strain-relieving wire, rope, tubing, or fiber optic cable. Ideal for electrical distributors and switchgear suppliers, this product distributes stress over a large area to prevent cable pullout and reduce bending at connection points. It is suitable for wiring enclosures, power boxes, and machine tools, offering durable and flexible holding capabilities.

Specifications

• Device Type: Strain Relief Grip
• Body Material: Anodized Aluminum
• Grip Material: Galvanized Steel
• Color: Galvanized
• Fitting Type: Wide-Range
• Fitting Style: Straight
• Fitting Gender: Male
• NPT Size: 1 Inch
• Weave: Single
• Cord Range: 0.700 - 0.970 Inches
• Product Weight: 10.8 lbs
• Country of Origin: Mexico
• Standards and Certifications: UL/CSA
• Warranty: 2-Year Limited

Features

• Distributes stress over a large area to securely hold and support cables
• Prevents cable pullout and provides strain relief to reduce bend radius
• Flexible mesh design suitable for pulling and supporting wire, rope, tubing, or fiber optic cable
• Anodized aluminum body with galvanized steel mesh for strength and corrosion resistance
• Includes insulated bushing for dust-tight applications
• Wide-range fitting accommodates a broad cord diameter range
