1 in. x 30-Degree Plain End Schedule 40 Standard Radius Elbow
SKU: #153622
Part: #5133745
UPC: 088700518148
1 in. x 30-Degree Plain End Schedule 40 Standard Radius Elbow
SKU: #153622
Part: #5133745
UPC: 088700518148
Total Price: $1.76 per each Sold in increments of 1 each
Description

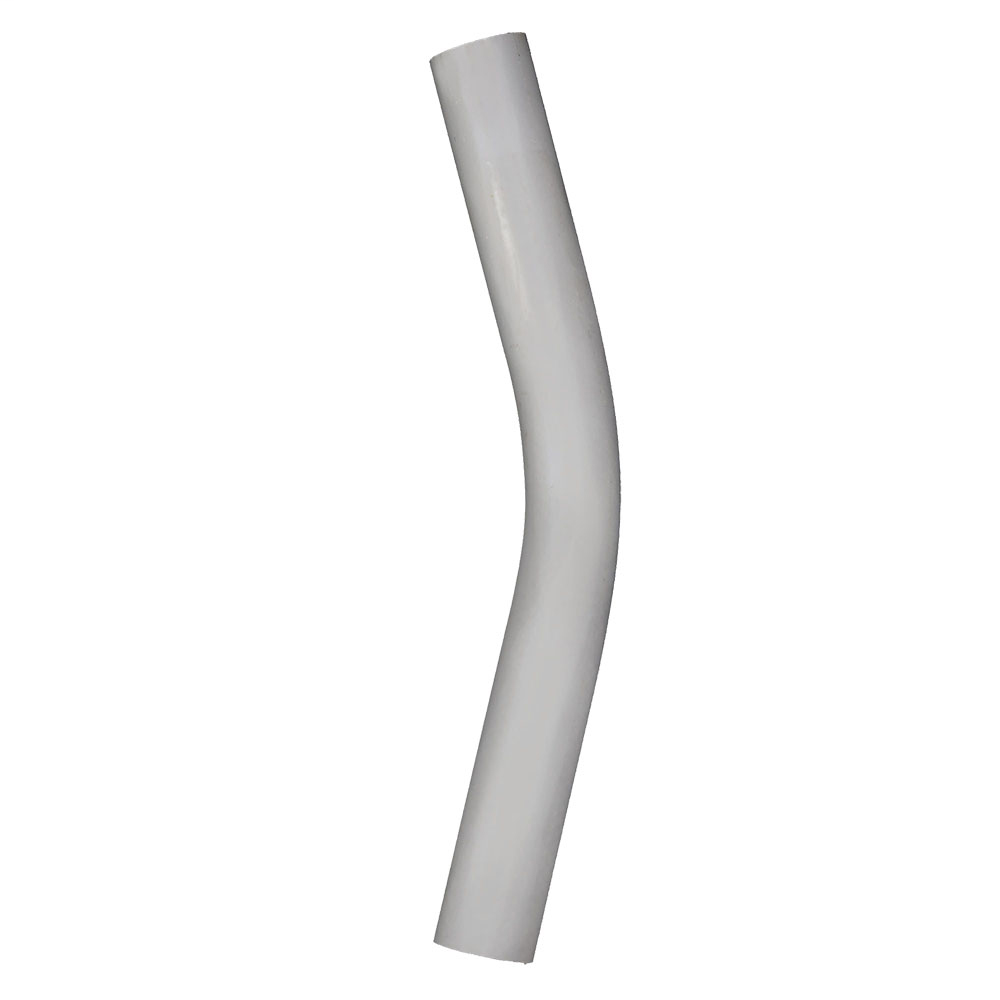

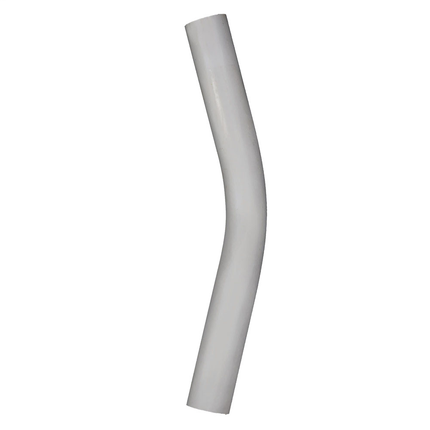

1 in. x 30-Degree Plain End Schedule 40 Standard Radius Elbow - PVC Conduit Fitting
The Cantex 1 in. x 30-Degree Plain End Schedule 40 Standard Radius Elbow is designed to change the direction of electrical conduit runs by 30 degrees. Constructed from rigid PVC, this fitting is suitable for use in electrical distributor and lighting solutions applications, providing reliable conduit bending with a standard radius to maintain wire integrity. It is ideal for wire and cable installations requiring precise directional changes and is compliant with NEC Article 352 for PVC conduit use.
Specifications
- Manufacturer: Cantex
- Manufacturer Part #: 5133745
- Size: 1 inch
- Degree of Bend: 30°
- Material: Rigid PVC
- Schedule: 40
- Weight: 1.0440 lbs
- Carton Quantity: 20
- UPC: 088700518148
- Bend Radius (R): 5 3/4 inches
- Height (H): 2 7/8 inches
- Offset (O): 3/4 inch
- Minimum Thickness (S): 1 7/8 inches
- Length (L): 3 inches
- Standard: ETL Listed, conforms to UL651 and NEMA TC3
Features
- Plain end design for easy solvent welding installation
- Standard radius bend reduces stress on wire and cable
- Rigid PVC construction offers durability and corrosion resistance
- ETL listed and compliant with NEC Article 352 for safe electrical conduit use
- Bend tolerance of ±2° ensures consistent installation angles
