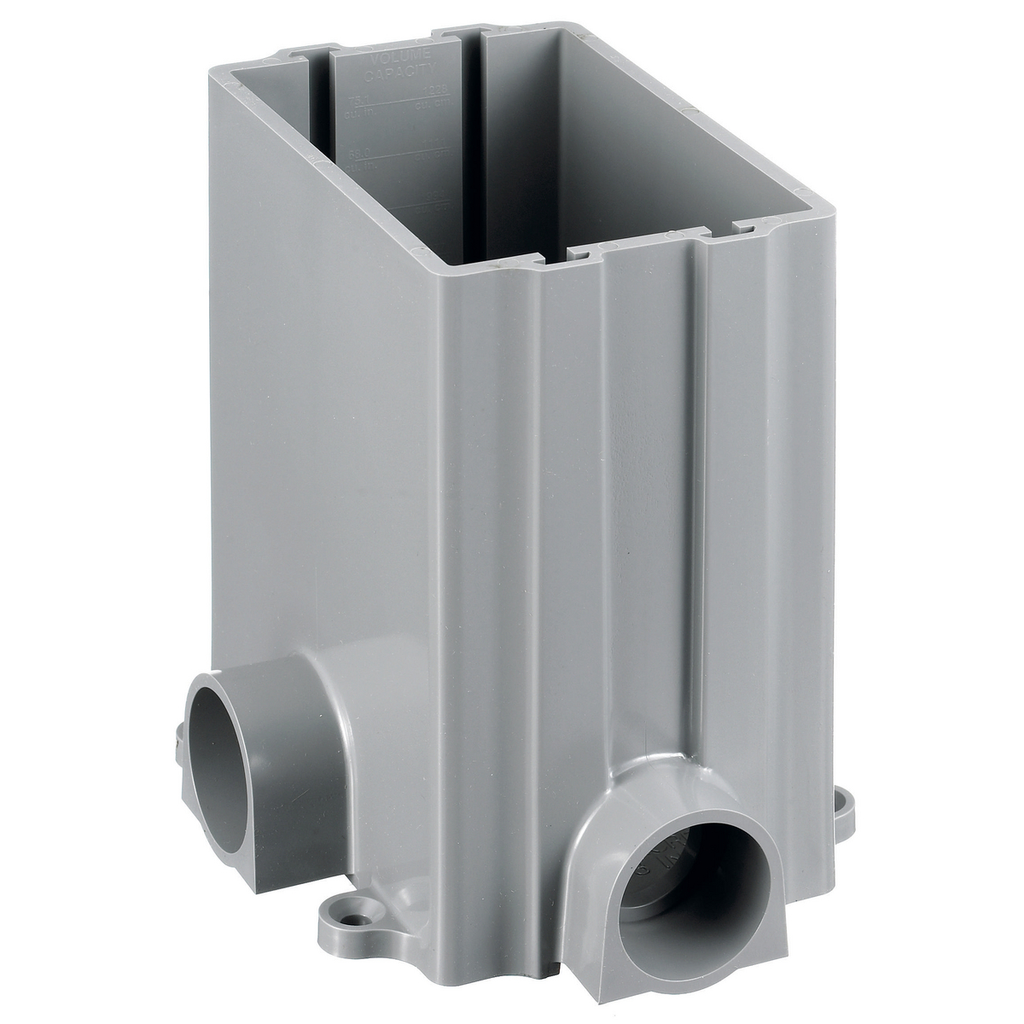

1-Gang Rectangular PVC Box, 3.00" Minimum Depth of Pour – Concrete Floor Box

This 1-Gang Rectangular PVC Box is designed for use with concrete floor boxes, providing a durable and non-corrosive solution for electrical installations in concrete floors. Manufactured by Hubbell Wiring Device-Kellems, it is molded from thermoplastic material and intended to be cast directly into concrete, making it suitable for applications requiring robust floor box enclosures. Ideal for electrical distributors and switchgear suppliers focusing on wire and cable management within concrete floor systems.

Specifications

• Application: For Use with Concrete Floor Boxes
• Material: Thermoplastic
• Color: Gray
• Dimensions: 3.6 in (Length) x 5.42 in (Width) x 6 in (Height)
• Number of Gangs: 1
• Mounting Method: Cast Into Concrete
• Cubic Capacity: 85.80 Cubic Inches
• Knockouts: 4) 1 1/4 in
• Cable Entry: From Top
• Construction: Molded
• Minimum Depth of Pour: 3.00 in
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: PFBRG1
• Country of Origin: United States
• UL/CSA Standards: UL514
• UPC: 783585848303
• Weight: 2.0940 lbs
• Made in USA: Yes

Features

• Non-corrosive plastic construction for durability
• Parallel conduit hubs reduce labor and material costs
• Includes concrete cover, conduit reducers, and conduit hub plugs
• Four hubs sized 1 1/4 inch for flexible conduit connections
• Cable entry from top for convenient wiring access
