Features

• Corrosion resistant for on-grade applications
• Leveling feet provide before pour adjustability
• Oversized threaded conduit access holes for low voltage
• Fully Adjustable; Cast Iron Box; Threaded Hubs

Specifications

• Application - For Use On: Concrete
• Country of Origin: US
• Dimensions: 4.69 in x 4.69 in x 3.15 in
• Width: 5.120 in
• Each - Width: 5.120 in
• Industry Standard(s): UL/CSA;UL514
• Mounting Method: Cast Into Concrete
• Application: Single Service In-Floor Delivery Systems
• Cable Entry: From Top
• Color: Aluminum Flange
• Height: 3.15 in
• Knockouts: 4) 3/4"
• Length: 4.69 in
• Size: 4.69 in x 4.69 in x 3.15 in
• Special Features: Fully Adjustable; Cast Iron Box; Threaded Hubs
• Standard: UL/CSA;UL514

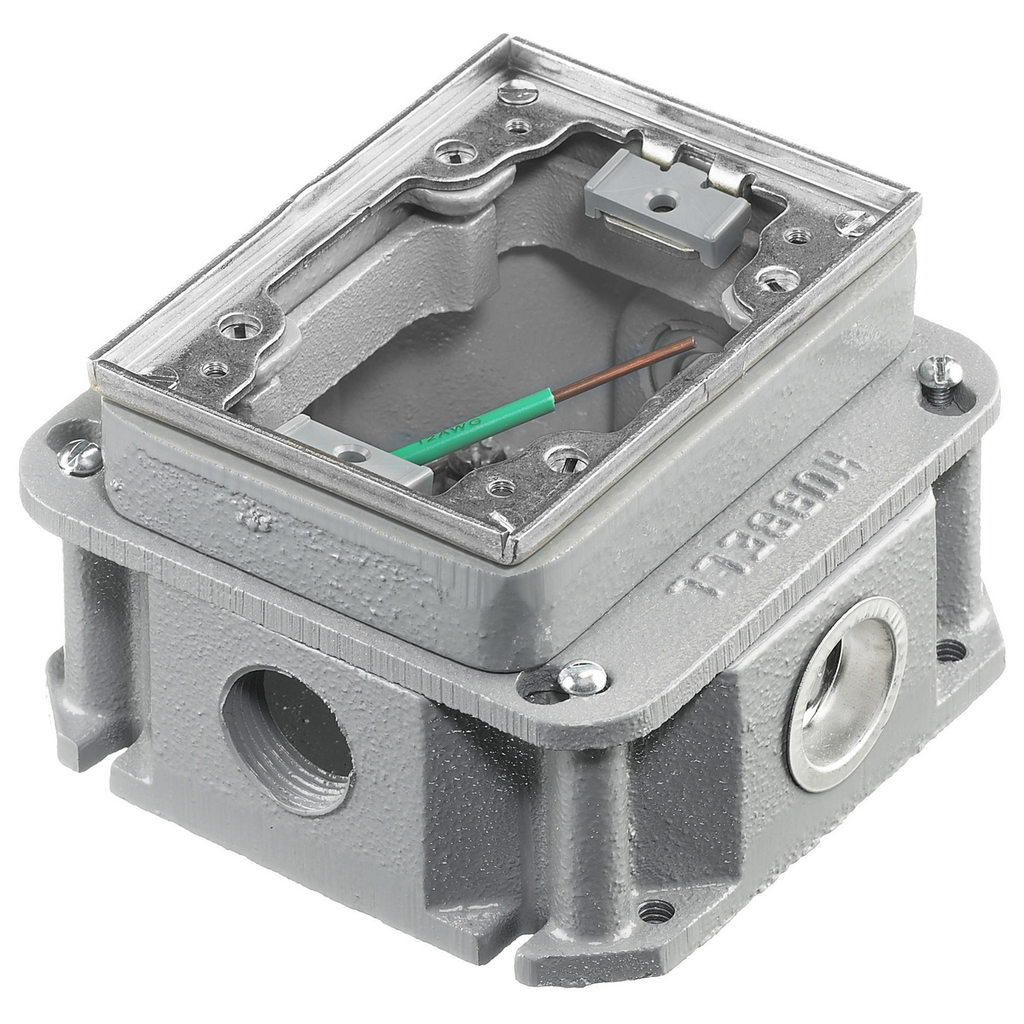

• Type: 1-Gang Deep Rectangular Cast Iron Box
• Finish Type: Aluminium
• Class Code: A36
• Description - Invoice: 1-G RECT CAST FB, DEEP, FULL ADJ, ALU
• Freight Class Code: 06168002
• Harmonization Code: 7326909090
• Image Actual Or Representative: A
• MSDS Flag: No
• Sub Class Code: A36A330
• Construction: Case Iron
• Material: Cast Iron
• Number of Gang(s): 1-Gang
• Series: Flush Rectangular - B24 Series
• Base Unit of Measure: EA
• BOX SIZE: 4.875x9.185x9.185 (in)
• Carton - Gross Weight per Pack: 18.400 lb.
• Carton - Number of Sub Packs: 4
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585104201
• Carton - Total Units: 4 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each

Certifications

• EU RoHS Indicator: No
