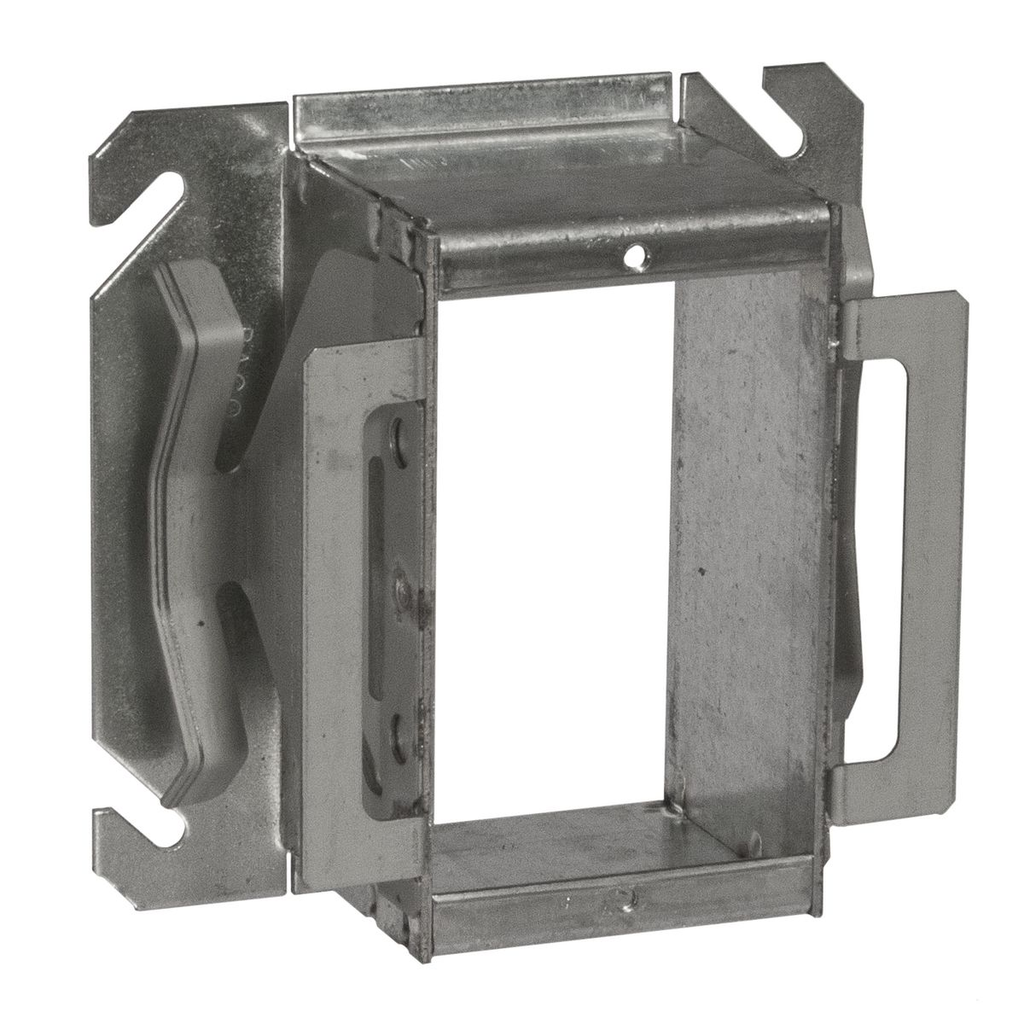

1-Gang BLOCK-LOC® 4 in. Square Tile Cover, 2 in. Deep – Masonry Box Cover

The 1-Gang BLOCK-LOC® 4 in. Square Tile Cover, 2 in. Deep by RACO is designed for secure and precise installation in masonry block walls. It features integral brackets that hold the box firmly to concrete blocks from both front and back, accommodating irregular openings. Suitable for electrical distributors and switchgear suppliers requiring reliable masonry box solutions, this product supports lighting solutions and wire and cable installations in 2-hour fire rated walls.

Specifications

• Material: 786B Steel
• Dimensions: 2.015 in (Length) x 4.188 in (Width) x 4.218 in (Height)
• Number of Gangs: 1
• Weight: 0.701 lb.
• Fire Resistance: Yes, acceptable for use in 2-hour fire rated walls
• Bracket Type: No Bracket
• Certification: UL Listed
• Buy America(n) Qualified: BABA Compliant (valid till December 2025)
• Country of Origin: United States
• Made in USA: Yes
• UPC: 050169500668

Features

• Integral brackets securely hold box to concrete block from front and back
• Quick and accurate positioning for installation
• Break-off front tabs for easy adjustment
• 14.5 cubic inch capacity
• Welded steel construction for durability
