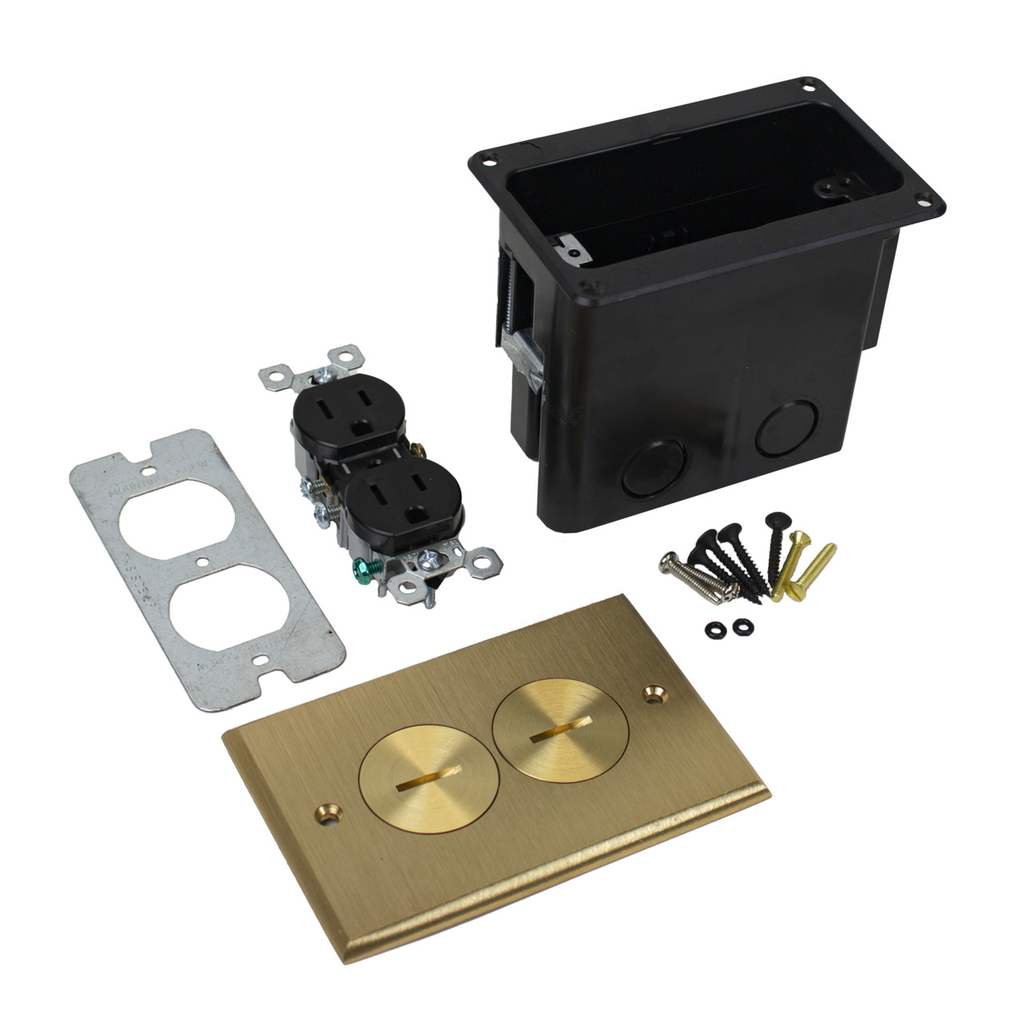

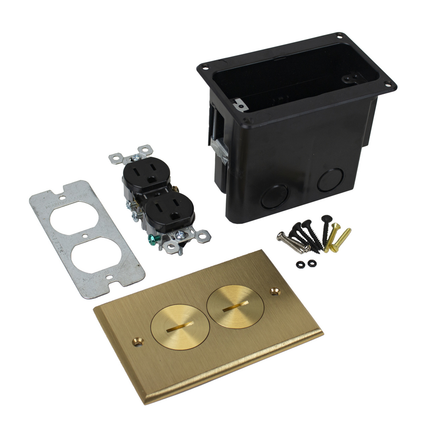

1-GANG 15A DUPLEX BRASS Residential Wood Floor Box

Wiremold® WMFB Series Residential Wood Floor Boxes from Legrand® offer a cost-effective solution for power, communication, and A/V requirements in open space residential areas. Designed for new or retrofit applications, these floor boxes provide versatile service combinations to meet a broad range of needs. Ideal for electrical distributors and lighting solutions providers, this product supports seamless integration of wire and cable infrastructure with a focus on durability and aesthetics.

Specifications

• Material: Non-Metallic
• Dimensions: Width 3.13 in, Height 4.0 in, Depth 5.0 in
• Cable Entry: Through Floor
• Construction: Not Assembled
• Product Weight: 1.05 lbs
• Manufacturer: Wiremold
• Manufacturer Part #: WMFB1DRB
• Country of Origin: China
• Order Minimum: 1 unit

Features

• Single-gang floor box with one 15A, 125V tamper-resistant duplex receptacle
• Brass cover with two screw plugs enhances residential aesthetics
• TopGuard protection design prevents water, dirt, and debris ingress, exceeding UL scrub water exclusion requirements
• Two attachment methods: four screw holes for floor attachment and integral swing brackets for secure mounting without screwing through the flange
• Compatible with industry standard and proprietary communication devices for voice, data, audio, and video applications
• Listed by Underwriters Laboratories to UL514A, UL514C, UL514D, and Canadian standard C22.2

Downloads & Links

• Spec Sheet
• Wiremold WMFB Series Floor Boxes
• WMFB-1 & WMFB-2 Series Floor Boxes
