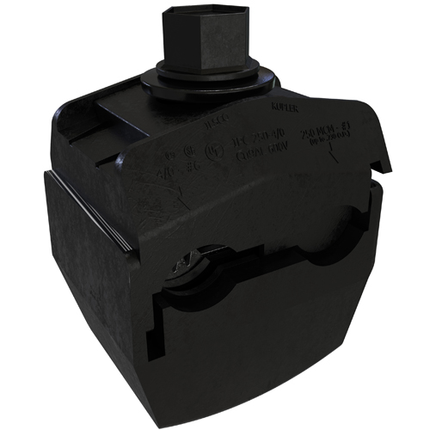

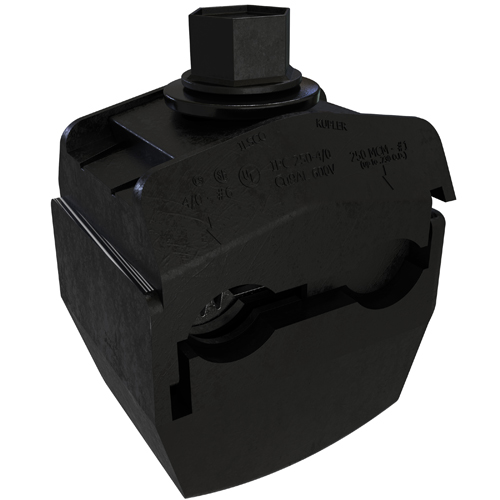

The ILSCO Insulation Piercing C
The Insulation Piercing Connector (IPC) accommodates conductors from 1 AWG to 250 MCM, providing secure electrical connections without requiring wire stripping. It simplifies installation in distribution systems while maintaining reliable contact integrity for power line and cable splice applications. This tap connector penetrates the insulation to create a solid connection while keeping the remaining wire properly insulated.
- Design: Corrosion-resistant materials for extended service life and insulator integrity
- Installation: Tool-free clamp design for quick and consistent connections
- Compatibility: Accommodates both copper and aluminum conductors for versatile cable applications
- Rating: Weather-resistant housing for indoor and outdoor use in insulated systems
- Application: Suitable for utility and industrial power distribution systems and line taps with IPC technology
onnector (IPC) provides reliable mechanical connections for large gauge conductors in electrical systems. It joins main conductors from 1 AWG to 250 MCM with tap conductors ranging from 6 AWG to 4/0, supporting both aluminum and copper stranded cable applications, creating secure splices in electrical lines and is ideal for maintaining the integrity of the insulator.
- Rating: Dual-rated for aluminum (205 amps) and copper (260 amps) at 600 volts maximum operating capacity
- Copper body with tin finish and steel clamping hardware for enhanced durability and corrosion resistance
- Connection: Single-pole, parallel wire orientation with mechanical clamping system to securely insulate and splice connections, ideal for applications requiring reliable insulator penetration
- Compatibility: Accommodates stranded conductors in both main and tap positions for versatile line application needs
- Installation: 5/8 inches external hex drive with 7/16 inches wire binding screw for proper torque application
