1.5 INCH TITE BITE 90 DEG INSUL
SKU: #55311
Part: #3139
UPC: 786210031392
1.5 INCH TITE BITE 90 DEG INSUL
SKU: #55311
Part: #3139
UPC: 786210031392
Total Price: $99.61 per each Sold in increments of 1 each
Next day delivery
Description

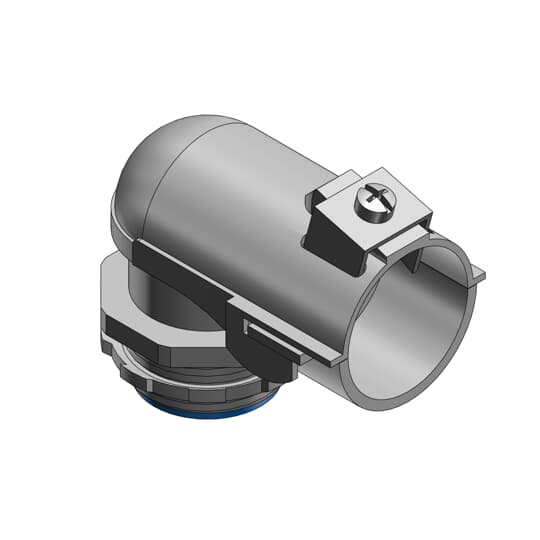

1.5 INCH TITE BITE 90 DEG INSUL Metal-Clad Cable Fitting
This 1.5 inch TITE BITE 90 Degree Nylon Insulated connector is designed for use with armored cable and flexible metal conduit. It provides a secure 90-degree bend fitting ideal for sharp bends at enclosures or equipment, facilitating installation in electrical distribution systems and lighting solutions. Suitable for electrical distributors and switchgear suppliers requiring robust cable fittings for metal-clad and armored cable applications.
Specifications
- Trade Size: 1-1/2 Inch
- Knockout Size: 1-1/2 Inch
- Cable Range: 1.812 to 2.031 Inch
- Material: Malleable Iron with Zinc Plating
- Insulation: Nylon Insulated
- Color: Metallic
- Product Weight: 17.5 lbs
- Application: For use with Armored Cable and Flexible Metal Conduit
- UPC: 786210031392
Features
- 90 Degree bend fitting for sharp cable routing
- Steel or malleable iron construction with zinc plating for corrosion resistance
- Nylon insulation for electrical safety and durability
- Single screw tightening mechanism for ease of installation
- Peep hole on top for easy inspection of ABC bushing
- Narrow design allows installation in adjacent knockouts
- Long throat design suitable for cast housing knockouts
- UL Listed for Metal Clad Cable (MCI) and Interlocked Armor Ground Type Metal Clad Cable (MCI-A)
