1.5 INCH R/G ORANGE W/TAPE
SKU: #15274
Part: #DH4X1C-150
UPC: 791207203539
1.5 INCH R/G ORANGE W/TAPE
SKU: #15274
Part: #DH4X1C-150
UPC: 791207203539
Description

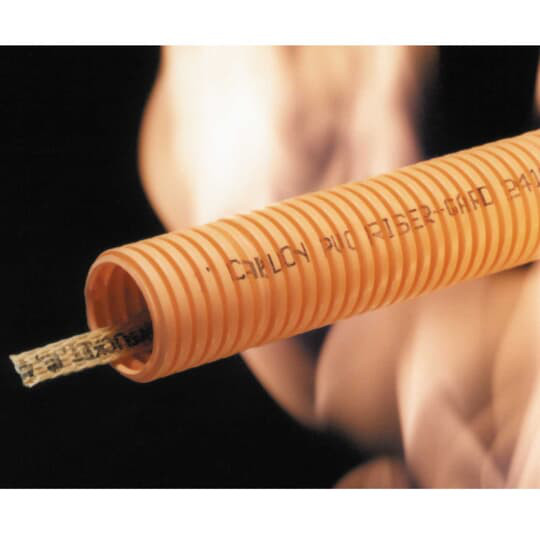

1.5 Inch Riser-Gard Orange Corrugated Conduit with Pull Tape
The 1.5 Inch Riser-Gard Orange Corrugated Conduit is a flexible, non-metallic raceway designed for use in riser and general purpose applications. It is suitable for vertical runs in shafts or between floors and areas other than the plenum. This conduit is UL Listed to UL 2024 standards, meeting National Electrical Code requirements for optical fiber, communications, and telecommunication raceways. It is manufactured from durable PVC material and includes a factory pre-installed pull tape for easier cable installation. Ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable protection in switchgear and communications infrastructure.
Specifications
- Nominal Size: 1-1/2 inch
- Inside Diameter: 1.54 in
- Outside Diameter: 1.91 in
- Wall Thickness: 0.080 in
- Length: 150 ft
- Material: PVC
- Color: Orange
- Product Weight: 0.2200 lbs per ft
- UL Listed to UL 2024 Standard
- Manufacturer: Carlon
- Manufacturer Part #: DH4X1C-150
Features
- Non-metallic flexible raceway for riser and general purpose applications
- UL Listed for riser, general purpose, and optical fiber/communications raceways
- Factory pre-installed pull tape for ease of cable pulling
- Suitable for use in vertical runs in shafts or between floors
- Meets National Electrical Code Articles 725, 770, 800, and 820
- Orange color for easy identification
- Not suitable for outdoor use (no UV protection)
- Storage temperature range: -4°F to 158°F; Handling temperature range: -4°F to 104°F
