1.25 IN PLENUM GARD CORR/ ORG SPLIT
SKU: #386132
Part: #CG4X1-200S
UPC: 791207214580
1.25 IN PLENUM GARD CORR/ ORG SPLIT
SKU: #386132
Part: #CG4X1-200S
UPC: 791207214580
Next day delivery
Description

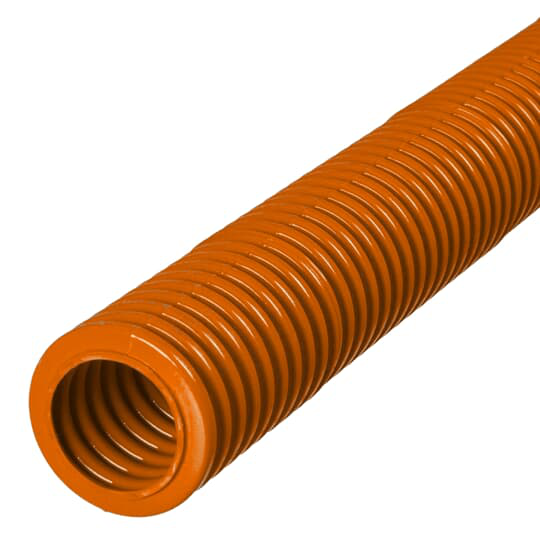

1.25 IN PLENUM GARD CORR/ ORG SPLIT Flexible Conduit
This 1.25-inch Plenum-Gard orange corrugated non-metallic flexible conduit is designed for plenum, riser, and general purpose applications. Manufactured by Carlon, it is suitable for electrical distributors and lighting solutions requiring flexible wire and cable protection in environments needing plenum-rated materials. The conduit is made from durable PVDF resin, providing resistance to abrasion and mechanical damage before and after cable installation. It complies with UL standards, making it a reliable component for switchgear suppliers and electrical installations.
Specifications
- Material: PVDF
- Color: Orange
- Nominal Size: 1-1/4 inch
- Inside Diameter: 1.35 in
- Outside Diameter: 1.64 in
- Length: 200 ft
- Application: Plenum, riser and general purpose applications
- Product Weight: 0.1600 lbs per foot
- Standards: UL e151168
- Country of Origin: United States (US)
Features
- Plenum-rated flexible conduit suitable for use in air handling spaces
- Corrugated design for flexibility and ease of installation
- Non-metallic construction reduces risk of corrosion
- Split conduit design for easy installation around existing cables
- Durable PVDF material resists abrasion and mechanical damage
- Compliant with NEC Articles 725, 770, 800, and 820 for plenum use
