1/2" Zinc Die Cast Set Screw Type - EMT to Box
SKU: #174268
Part: #371TZ
UPC: 751338136106
1/2" Zinc Die Cast Set Screw Type - EMT to Box
SKU: #174268
Part: #371TZ
UPC: 751338136106
Description

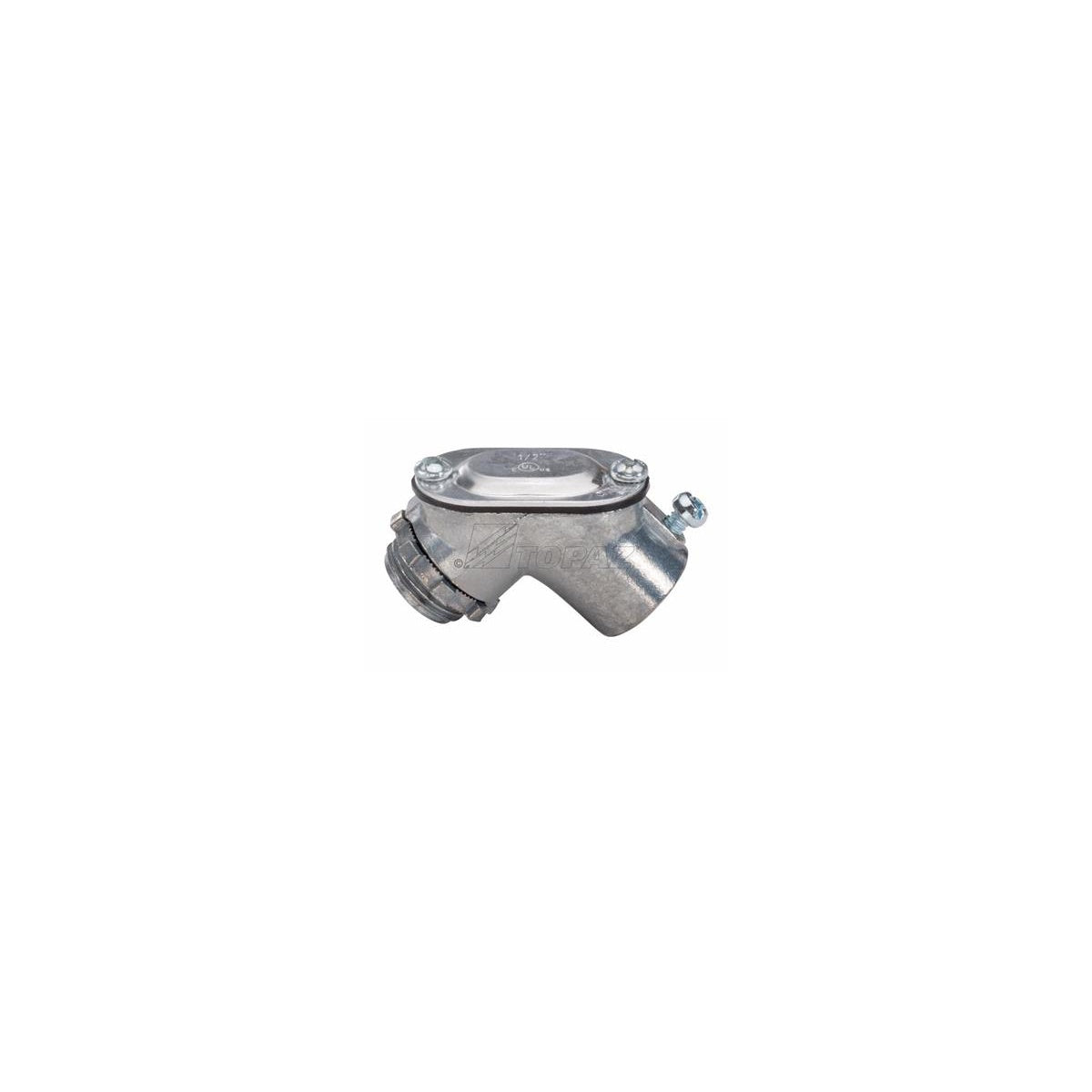

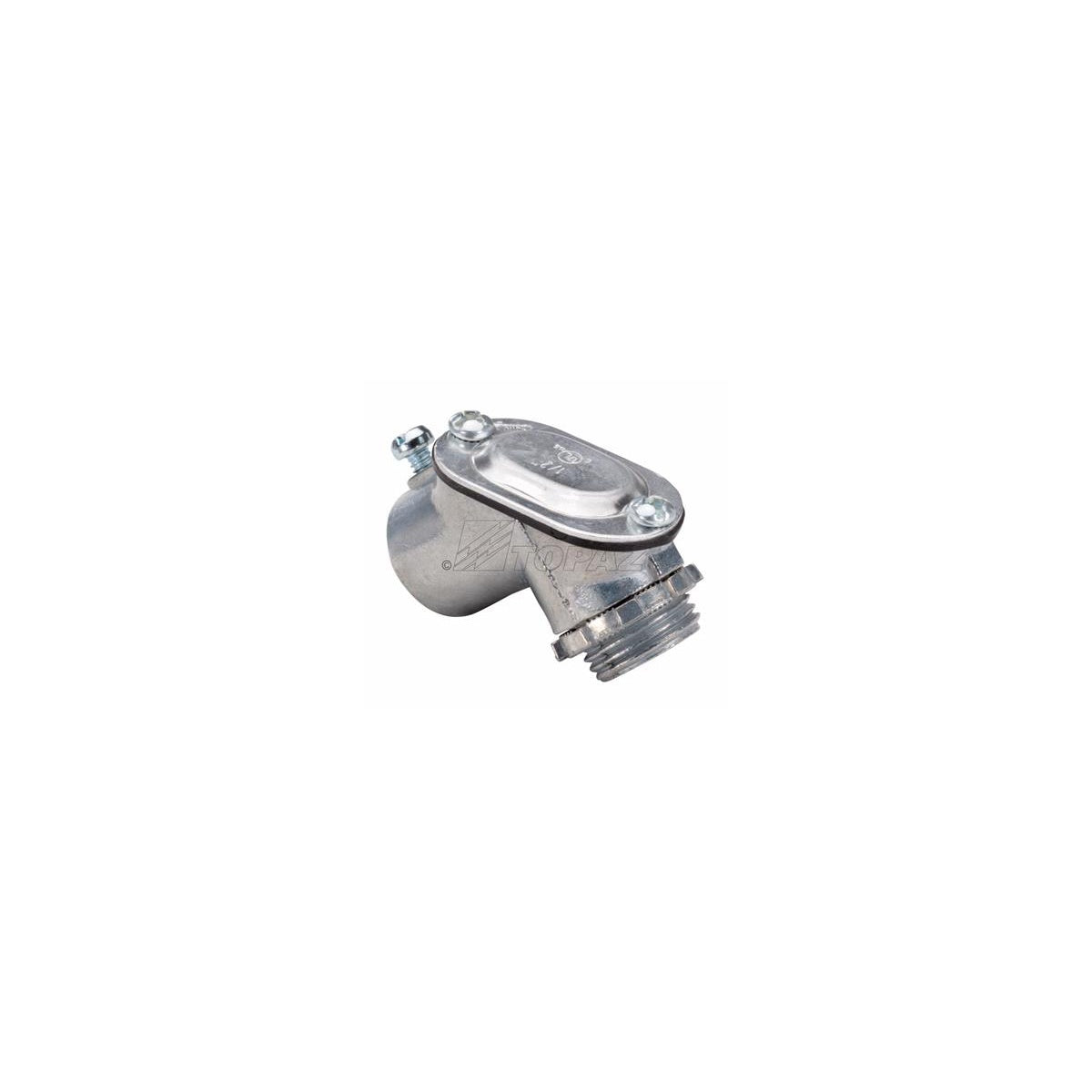

1/2" Zinc Die Cast Set Screw Type - EMT to Box Pull Elbow
This 1/2" zinc die cast set screw type 90° pull elbow is designed for connecting EMT conduit to metal outlet boxes or enclosures, forming a precise 90-degree bend. Suitable for dry location applications, it supports wire pulling through a removable cover and includes a die cast locknut for secure installation. This product is ideal for electrical distributors and switchgear suppliers seeking reliable conduit fittings for indoor use.
Specifications
- Material: Die Cast Zinc
- Bend Angle: 90 DEG
- Outside Diameter: 0.93 IN
- Product Weight: 0.1700 lbs
- Application: Dry Locations
- Manufacturer: Southwire
- Manufacturer Part #: 371TZ
Features
- Removable aluminum cover facilitates wire pulling
- Die cast locknut provided for secure attachment
- Neoprene gasket for sealing
- UL listed for safety and compliance
- Available in trade size 1/2"
- Designed for indoor use only
