1/2" Top Flex 1 Tubing Reel
SKU: #187468
Part: #HF112R
UPC: 751338300156
1/2" Top Flex 1 Tubing Reel
SKU: #187468
Part: #HF112R
UPC: 751338300156
Total Price: $0.86 per foot Sold in increments of 1 foot
Next day delivery
Description

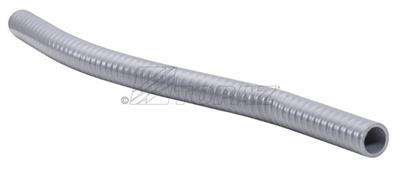

1/2" Top Flex 1 Tubing Reel – Flexible Non-Metallic Liquidtight Conduit
The 1/2" Top Flex 1 Tubing Reel by Southwire is a UL Type B flexible non-metallic liquidtight conduit designed for electrical distributors and lighting solutions requiring durable, corrosion-resistant tubing. Suitable for indoor and outdoor use, this tubing is ideal for applications including HVAC equipment, machine tools, motors and controls, marine and printing equipment, pumps, and refrigeration equipment. It supports flexible connections in hazardous locations as per NEC classifications.
Specifications
- Manufacturer Part #: HF112R
- Size: 1/2"
- Length: 1000' Reel
- Weight per Case: 143 lbs
- Outside Diameter: 0.82" - 0.84"
- Inside Diameter: 0.622" - 0.642"
- Wall Thickness: 0.21"
- Material: Integral rigid and flexible PVC construction
- Temperature Rating: 80° C
- UL Listing: UL Type B flexible non-metallic liquidtight conduit
Features
- Resists corrosion, abrasion, oil, water, acid, metal shavings, and rough environments
- Smooth inside surface for easier wire pulling without damaging conductors
- Resists abuse, pull, and crushing forces
- Suitable for direct burial and poured concrete applications
- Lightweight with lower installed cost
- Quick installation; cuts easily with utility knife or PVC cutter
- UV rated for outdoor use
- Compatible with top-flex nylon connectors (straight or right angle) and Topaz die cast connectors for liquidtight conduit
