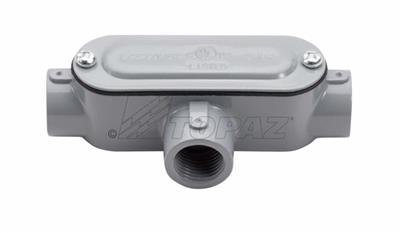

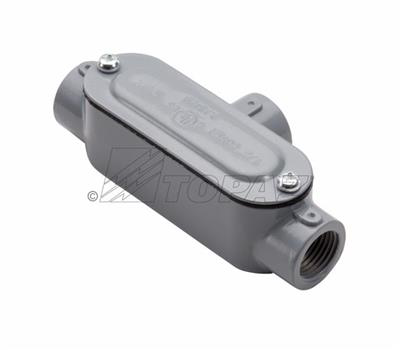

1/2" Threaded T Type Rigid Conduit Body with Cover & Gasket – Electrical Conduit Accessory

This 1/2" Threaded T Type Rigid Conduit Body provides secure access to conductors for pulling, splicing, and maintenance. Designed for use in concrete and wet locations, it is suitable for electrical distributors and lighting solutions requiring durable conduit fittings. The conduit body facilitates wiring system management in industrial and commercial applications, complementing wire and cable installations and switchgear systems.

Specifications

• Material: Die Cast Aluminum
• Form: T
• Hub Size: 1/2"
• Dimensions (L x H x W): 4.72 in x 1.37 in x 1.33 in
• Mounting: Wall Mount
• Product Weight: 0.3395 lbs
• Manufacturer: Southwire
• Manufacturer Part #: T1CG
• Application: To provide access to conductors for pulling, splicing, and maintenance; suitable for use in concrete and wet locations

Features

• Threaded T type design with cover and gasket
• NPT tapered hubs for secure conduit connections
• Copper-free aluminum die cast construction for corrosion resistance
• Stamped steel cover with neoprene rubber gasket for environmental sealing
• Powder coat finish for durability in harsh environments
• Complies with UL 514A and UL 514D standards
• Meets Federal Specification W-C-586D and A-A-50563
• Rated to NEMA FB 1-2014 and NEMA 3R for wet location suitability

Downloads & Links

• Spec Sheet
