1/2" Threaded LR Type Rigid Conduit Bodies - Hot Dip Galvanized
SKU: #190197
Part: #LR1MHDG
UPC: 751338866331
1/2" Threaded LR Type Rigid Conduit Bodies - Hot Dip Galvanized
SKU: #190197
Part: #LR1MHDG
UPC: 751338866331
Total Price: $14.44 per each Sold in increments of 1 each
Next day delivery
Description

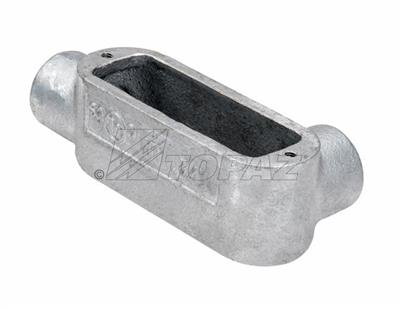

1/2" Threaded LR Type Rigid Conduit Bodies - Hot Dip Galvanized
This rigid conduit body by Southwire, designed for electrical distributors and lighting solutions providers, facilitates conductor installation, splicing, and taps for branch conduit runs. Constructed of malleable iron with a hot dip galvanized finish, it ensures durability and corrosion resistance for both interior and exterior applications, including bridges, subways, and railways. The conduit body supports wire and cable routing in conduit systems and is suitable for wall mounting in various electrical and switchgear installations.
Specifications
- Material: Malleable Iron
- Finish: Hot Dip Galvanized
- Form: LR
- Hub Size: 1/2"
- Dimensions (L x W x H): 4.69 in x 2.08 in x 1.46 in
- Product Weight: 0.7980 lbs
- Mounting: Wall Mount
- Manufacturer: Southwire
- Manufacturer Part #: LR1MHDG
- UPC: 751338866331
Features
- Hot dip galvanized finish provides superior protection against severe environmental factors
- Compatible with all Form 5 and Form 35 series conduit bodies and covers
- Enables 90 degree bends in conduit runs
- Provides taps for branch conduit runs
- Permits access to conductors for pulling, splicing, and maintenance
