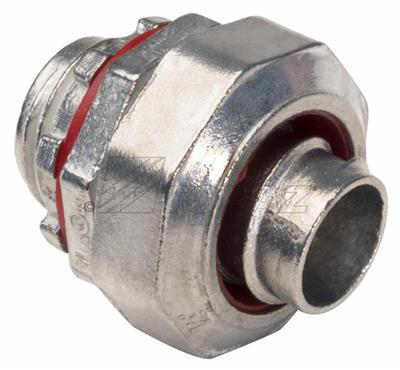

1/2" Straight Liquidtight Connector – Liquidtight Connector

This 1/2" Straight Liquidtight Connector is designed for secure and reliable connections with metallic and nonmetallic type B liquidtight conduit. Manufactured by Southwire, it provides effective sealing against water, oil, dust, and other contaminants, ensuring durability and performance in electrical installations. Suitable for electrical distributors and switchgear suppliers requiring robust wire and cable protection solutions.

Specifications

• Material: Die Cast Zinc
• Connection: Threaded
• Product Weight: 0.1222 lbs
• Manufacturer Part #: 471
• Conduit Size: 1/2"
• Dimensions (inches): A - 1.50, B - 1.385, C - 0.42
• UPC: 751338142602

Features

• Liquidtight, raintight, and oiltight sealing
• Straight connector design
• Assembled with a die cast locknut for secure installation
• Corrosion resistant zinc die cast construction
• UL listed for safety and compliance

Downloads & Links

• Spec Sheet
