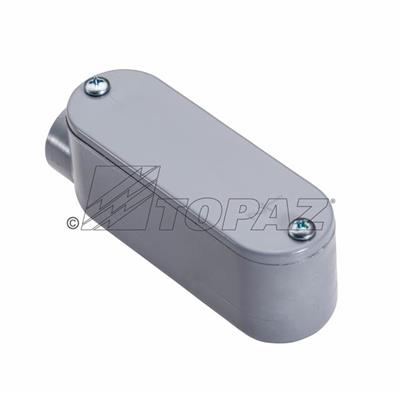

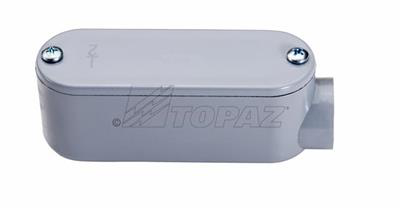

1/2" Schedule 40 PVC E Type Conduit Bodies with Junction Boxes
SKU: #169272
Part: #1191
UPC: 751338233850
1/2" Schedule 40 PVC E Type Conduit Bodies with Junction Boxes
SKU: #169272
Part: #1191
UPC: 751338233850
Description
1/2" Schedule 40 PVC E Type Conduit Bodies with Junction Boxes – Electrical Conduit Solutions
Topaz’s 1/2" Schedule 40 PVC E Type Conduit Bodies with Junction Boxes are designed for use as terminator bodies at the end of conduit runs. These conduit bodies provide a durable and reliable solution for electrical distributors and switchgear suppliers needing PVC conduit components compatible with standard wire and cable installations. The E type bodies are stackable with most other oblong conduit bodies and can be installed without cutting into existing conduit systems. The removable cover with zinc-plated screws ensures easy access for wiring and maintenance. UL approved sizes range from 1/2” to 4”.
Specifications
- Size: 1/2"
- Material: PVC
- Cover Screws: Zinc plated steel
- Weight: 0.1900 lbs
- Manufacturer Part #: 1191
- UPC: 751338233850
- Dimensions (inches): A - 4, B - 1.4375, C - 1.3125, D - 4.25
Features
- Rectangular shaped conduit body with removable cover and one hub
- One conduit hub for solvent cementing
- Stackable to most oblong bodies without cutting into existing conduit systems
- Use as a terminator body at the end of conduit runs
- UL approved for sizes 1/2” to 4”
