1/2" Expansion Coupling
SKU: #193076
Part: #TXJG14HDG
UPC: 751338017788
1/2" Expansion Coupling
SKU: #193076
Part: #TXJG14HDG
UPC: 751338017788
Next day delivery
Description

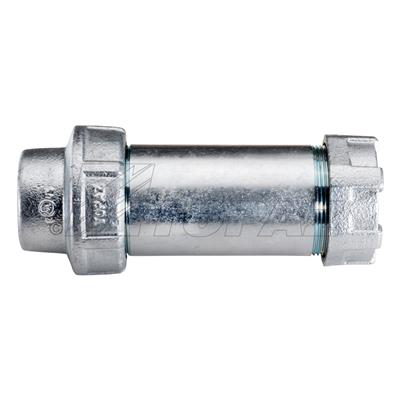

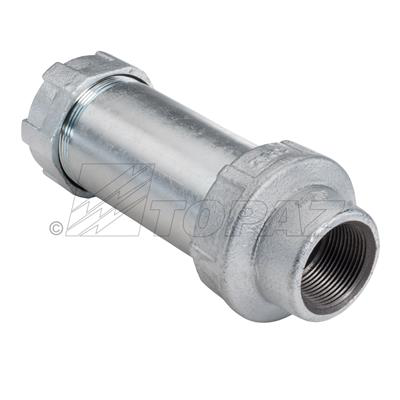

1/2" Expansion Coupling – Rigid Expansion Coupling
The 1/2" Expansion Coupling by Southwire is designed to accommodate up to 4 inches of linear movement caused by thermal expansion and contraction, making it suitable for outdoor and industrial applications. This rigid expansion coupling is ideal for use with rigid UL 6 conduit in environments where structures such as bridges, railroads, and buildings experience movement. The weatherproof, hot dip galvanized finish ensures durability and protection against severe environmental factors. The internal grounding design eliminates the need for external bonding jumpers and cables, supporting safe and reliable electrical installations.
Specifications
- Manufacturer Part #: TXJG14HDG
- Size: 1/2"
- Product Weight: 1.2333 lbs
- UPC: 751338017788
- Material Body: Steel
- Reducer Material: Malleable iron
- Packing Material: PTFE composite
- Washer & Bushing Material: Malleable iron
- Gasket Material: PTFE composite
- Grounding Spring: Beryllium bronze-electrogalvanized
- Finish: Hot dip galvanized
- Maximum Expansion: 4" total (2" in either direction on center)
- UL Standard: UL 514B
- Federal Specification: WF-408E
- NEMA Standard: FB 1
- ASTM Standard: A123/123M
Features
- c(UL)us listed for wet locations
- Internal grounding design prevents need for external bonding jumpers and cables
- Prevents conduit buckling and circuit failures
- Weatherproof design suitable for outdoor structures prone to movement
- Hot dip galvanized finish provides superior protection against severe environmental factors
- Compatible with Rigid UL 6 Conduit
