1/2" EMT & Rigid LR Type Combination Conduit Body
SKU: #190201
Part: #LR1SS
UPC: 751338212428
1/2" EMT & Rigid LR Type Combination Conduit Body
SKU: #190201
Part: #LR1SS
UPC: 751338212428
Total Price: $3.86 per each Sold in increments of 1 each
Next day delivery
Description

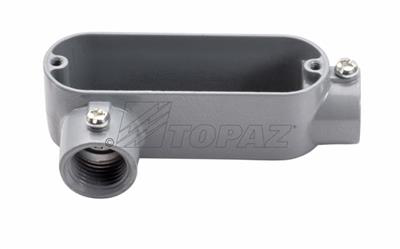

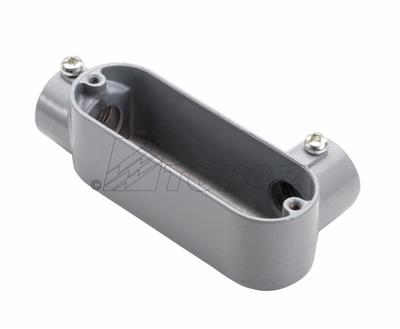

1/2" EMT & Rigid LR Type Combination Conduit Body – Electrical Conduit Accessory
This 1/2" EMT & Rigid LR Type Combination Conduit Body by Southwire is designed to provide access to conductors for pulling, splicing, and maintenance. It is suitable for use in concrete and wet locations, making it a reliable component for electrical distributors and lighting solutions requiring durable wire and cable management. The conduit body supports threaded rigid metal conduit and is compliant with NEMA FB 1 standards for wet location use.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: LR1SS
- Material: Die Cast Aluminum
- Form: LR
- Hub Size: 1/2"
- Dimensions: 4.56 in (Length) x 1.31 in (Height) x 2.06 in (Width)
- Product Weight: 0.2100 lbs
- Mounting: Wall Mount
- Application: Suitable for use in concrete and wet locations
- UPC: 751338212428
Features
- Combination LR type conduit body
- NPT tapered hubs for secure conduit connection
- Suitable for use in concrete installations
- NEMA FB 1 rated for wet locations when used with threaded rigid metal conduit
- Copper-free aluminum die cast construction with steel screws for durability
- Powder coat finish for corrosion resistance
