1/2" EMT Compression to Flex Top-Bite Combination Coupling – EMT Compression Coupling

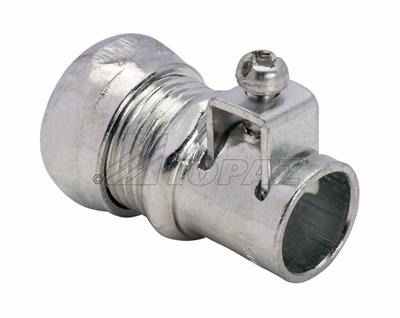

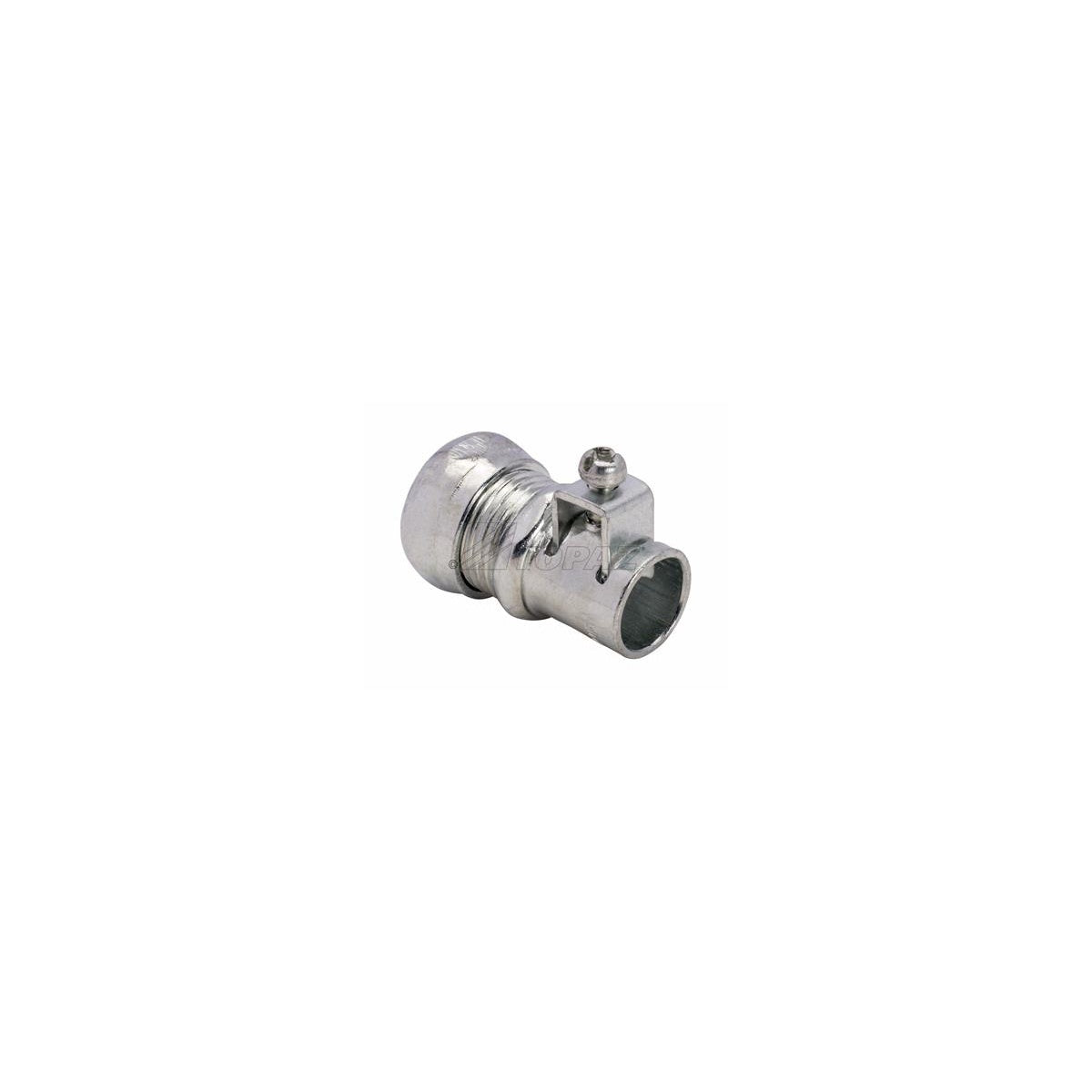

The 1/2" EMT Compression to Flex Top-Bite Combination Coupling by Southwire is designed to securely connect flexible (FLEX), armored (AC), and metal-clad (MC) cables to EMT conduit. This compression-type coupling is suitable for electrical distributors and switchgear suppliers requiring reliable conduit connections in wire and cable installations. Its robust steel construction with a zinc-plated finish ensures durability and corrosion resistance, making it a dependable component in lighting solutions and electrical distribution systems.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: 431TBS
• Material: Steel
• Connection Type: Compression
• Installation Type: Compression
• Product Weight: 0.1760 lbs
• Length: 1.563 in
• Outside Diameter: 1.25 in
• Cable Opening: 0.635 in (min) to 0.93 in (max)
• UL Listed: Yes (E148716)

Features

• One-piece tubular construction for enhanced strength and product integrity
• Dual gripping saddle clamps for secure cable retention
• Saddle clamps adjustable on screw for ease of installation
• Tri combo head screw for versatile fastening
• Zinc-plated finish for corrosion resistance
• Compatible with Flex, AC, and MC cables

Downloads & Links

• Spec Sheet
