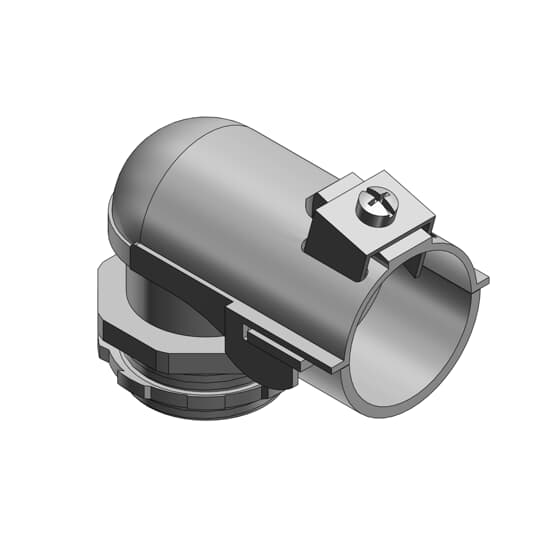

1/2-90 TITE-BITE CONNECTOR Metal-Clad Cable Fitting

The 1/2-90 TITE-BITE CONNECTOR by Thomas & Betts is a metal-clad and armored cable fitting designed for making sharp 90-degree bends in electrical installations. Suitable for use with armored cable and flexible metal conduit, this connector facilitates secure and reliable cable routing in electrical distribution and lighting solutions. Its compact design allows easy installation in adjacent knockouts, making it a practical choice for electrical distributors and switchgear suppliers.

Specifications

• Trade Size: 1/2 Inch
• Knockout Size: 1/2 Inch
• Cable Range: 0.670 to 0.920 Inch
• Material: Malleable Iron with Zinc Plating
• Color: Metallic
• Product Weight: 22 lbs
• Application: For Use with Armored Cable and Flexible Metal Conduit
• Package Units: 25 EA
• Package Dimensions: 8 in (H) x 5 in (W) x 4 in (D)
• RoHS Status: Compliant with EU Directive 2011/65/EU and Amendment 2015/863

Features

• Steel or malleable iron construction ensures durability
• 90-degree bend facilitates sharp turns at enclosures or equipment
• Single screw tightening mechanism simplifies installation
• Narrow design allows installation in adjacent knockouts
• Peep hole on top allows easy inspection of ABC bushing
• Long throat length for installation in cast housing knockouts
• UL Listed for Metal Clad Cable (MCI) and Interlocked Armor Ground Type Metal Clad Cable (MCI-A)
