1/2" 45° Liquidtight Connector with Grounding Lug
SKU: #172073
Part: #231SGR
UPC: 751338868700
1/2" 45° Liquidtight Connector with Grounding Lug
SKU: #172073
Part: #231SGR
UPC: 751338868700
Next day delivery
Description

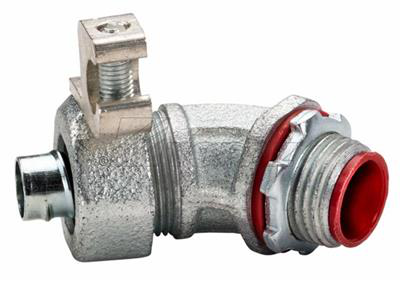

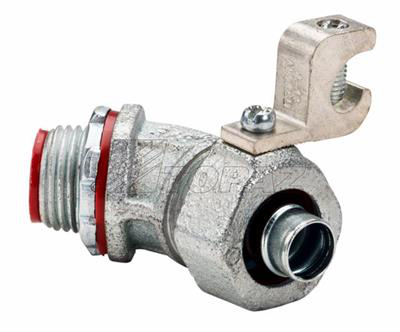

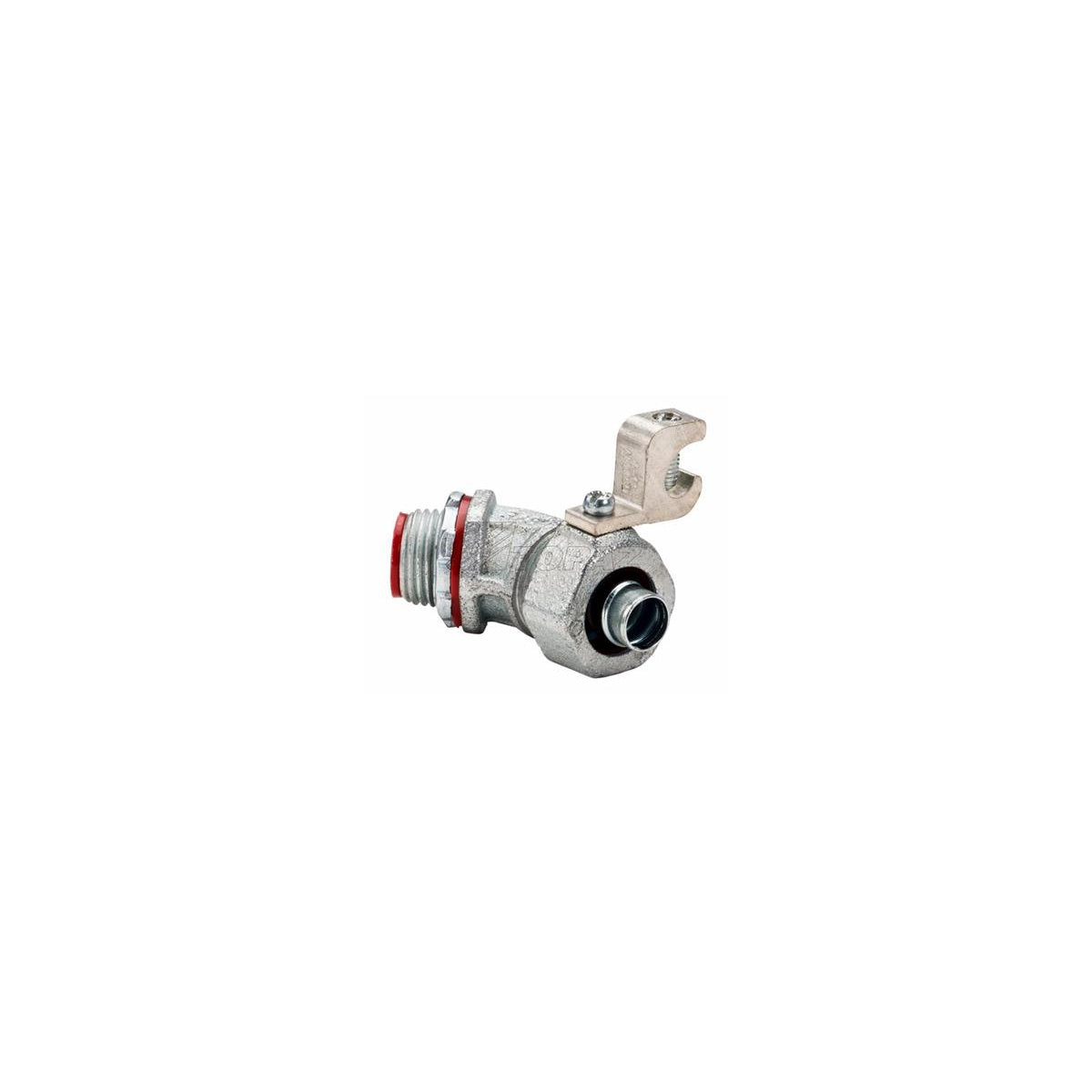

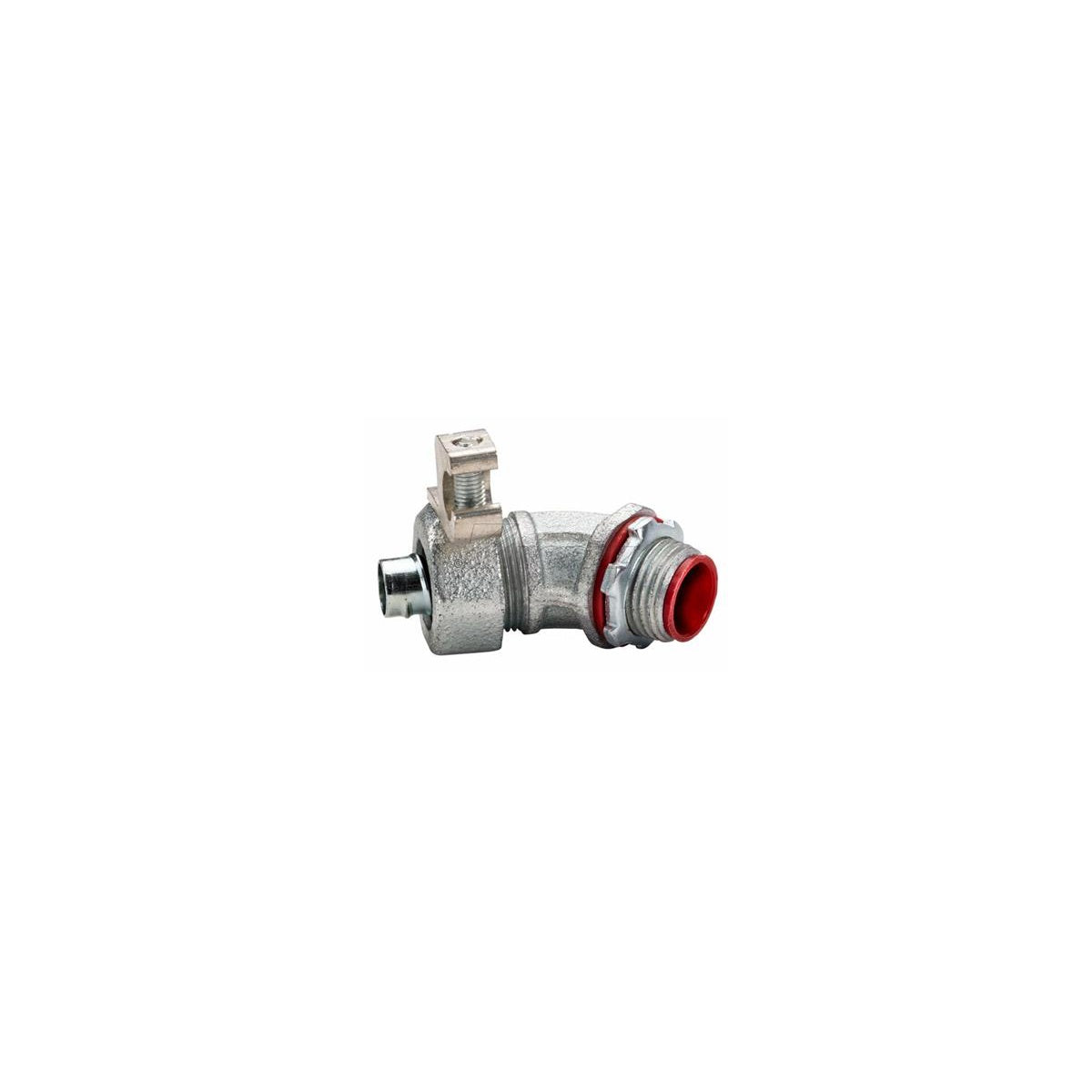

1/2" 45° Liquidtight Connector with Grounding Lug – Electrical Distributor Connector
The 1/2" 45° Liquidtight Connector with Grounding Lug by Southwire is designed for secure and durable connections of liquidtight conduit systems in electrical installations. This connector is commonly used by electrical distributors, lighting solutions providers, and switchgear suppliers to terminate liquidtight flexible metal conduit while providing a reliable grounding path. Ideal for wire and cable protection, it complies with NEC requirements for bonding jumpers and is suitable for hazardous locations, ensuring safety and code compliance in commercial and industrial wiring applications.
- Manufacturer: Southwire
- Manufacturer Part Number: 231SGR
- UPC: 751338868700
- Conduit Size: 1/2"
- Lug Size: 14-4 AWG
- Material: Malleable iron body, steel locknut, aluminum grounding lug
- Finish: Zinc electroplated for corrosion resistance
- Dimensions (inches): A - 1.36, B - 1.50, C - 2.51
- Product Weight: 0.2760 lbs
- UL Listed: UL 467 and UL 486A compliant
- Standards: Fed. Spec W-S-610E, NEMA GR 1-2017
- Suitable for hazardous locations per NEC 501-4(b), 502-4(a), 503-3(a)
Specifications
- Liquidtight, raintight, and oiltight sealing
- 45° angled design for easier conduit routing in tight spaces
- Lay-in grounding lug for simple and secure bonding conductor termination
- Insulated throat protects conductors from abrasion damage
- Zinc electroplated finish enhances durability and corrosion resistance
- Meets NEC code requirements for bonding jumpers parallel to conduit
- Suitable for grounding in conduit sizes 3/8" through 1-1/2"
Features
