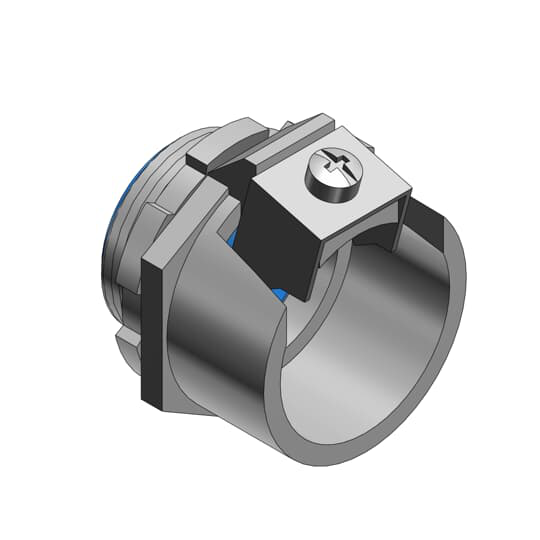

1-1/4INCH STR. TITE-BITE CONNECTOR – Metal-Clad and Armored Cable Fitting

The 1-1/4INCH STR. TITE-BITE CONNECTOR by Thomas & Betts is a straight metal-clad and armored cable fitting designed for use with armored cable and flexible metal conduit. This connector is suitable for electrical distributors and lighting solutions requiring secure and reliable cable connections. It features a malleable iron construction with zinc plating and nylon insulation, ensuring durability and resistance to vibration and strain in demanding electrical installations.

Specifications

• Trade Size: 1-1/4 Inch
• Knockout Size: 1-1/4 Inch
• Cable Range: 1.562 to 1.750 Inch
• Material: Malleable Iron with Zinc Plating
• Insulation: Nylon Insulated
• Color: Metallic
• Product Weight: 5.4 lbs
• Application: For use with Armored Cable and Flexible Metal Conduit

Features

• Designed to resist vibration and strain with a tough, insulated lining and Tite-Bite¬Æ design
• Constructed from malleable iron with zinc plating for corrosion resistance
• Easy installation with a double-grip saddle for secure cable retention
• UL Listed for Metal Clad Cable (MCI) and Interlocked Armor Ground Type Metal Clad Cable (MCI-A)
• Suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable fittings
