Description

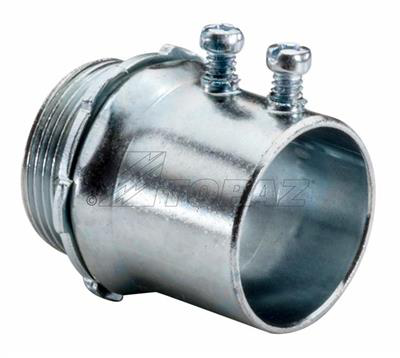

1-1/4" Steel Set Screw Type Connector for EMT Conduit
The 1-1/4" Steel Set Screw Type Connector is designed for secure and concrete-tight connections of EMT conduit to electrical boxes or enclosures. This connector is suitable for use in dry locations and is ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable fittings. It features a threaded and set screw connection ensuring a strong mechanical bond, making it a dependable component in switchgear and conduit installations.
Specifications
- Application: For EMT Conduit
- Material: Steel
- Finish: Zinc Plated
- Connection: Threaded x Set Screw
- Insulation: Bare
- Product Weight: 0.2940 lbs
- Manufacturer Part #: 634S
Features
- Set screw type connector for secure assembly
- Concrete tight when taped
- Assembled with a steel locknut
- Suitable for bonding EMT thin wall conduits to boxes or enclosures
- UL listed and NEMA/ANSI FB-1 compliant
