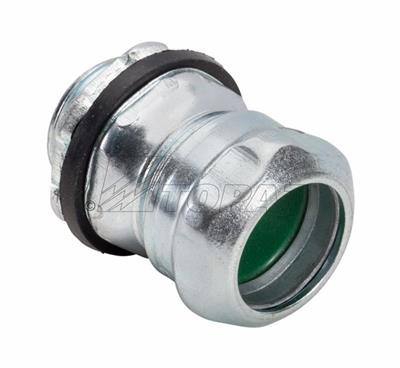

1-1/4" Steel Raintight Compression Type Connector

The 1-1/4" Steel Raintight Compression Type Connector is designed to securely bond EMT thin wall conduits to electrical boxes or enclosures. Manufactured by Southwire, this connector provides a raintight and concrete tight connection that protects against environmental elements, ensuring reliable performance in electrical distribution and lighting solutions applications. It is suitable for use by electrical distributors and switchgear suppliers requiring durable wire and cable fittings.

Specifications

• Material: Steel
• Finish: Zinc Plated
• Connection: Threaded x Compression
• Insulation: Bare
• Product Weight: 0.4420 lbs
• Manufacturer Part #: 654SRT
• UL Listed
• Size: 1-1/4"
• Dimensions (inches): A - 1.687, B - 1.012, C - 2.062

Features

• Compression type assembly for secure conduit connection
• Raintight and concrete tight design to prevent damage from elements
• Rugged steel construction with zinc plated finish for corrosion resistance
• Includes steel locknut and gasket for enhanced sealing
• Complies with NEMA/ANSI FB-1 standards

Downloads & Links

• Spec Sheet
