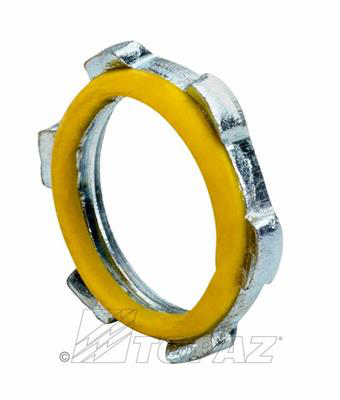

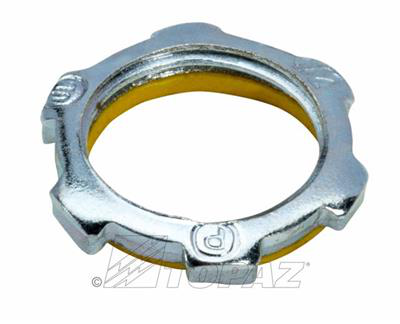

1-1/4" Sealing Locknuts – Electrical Conduit Fittings

1-1/4" Sealing Locknuts by Southwire are designed to securely affix conduits or connectors to electrical junction boxes or enclosures, providing moisture-proof protection in wet locations. These locknuts are suitable for use by electrical distributors and switchgear suppliers in lighting solutions, wire and cable installations, and conduit securing applications for both indoor and outdoor environments.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: 714
• Material of Construction: Steel
• Finish: Zinc Plated
• Height: 0.32 IN
• Product Weight: 0.0620 lbs
• Size: 1-1/4"
• Thread Pitch Diameter: 1.595 - 1.605 inches
• Threads Per Inch: 11-1/2
• UPC: 751338174801
• UL Listed: UL 514B

Features

• Zinc plated steel construction for natural corrosion resistance
• PVC molded gasket ensures a watertight seal for moisture protection
• Compatible with Rigid and IMC conduit and various threaded fittings
• Suitable for securing conduit to steel outlet boxes or metal enclosures
• UL listed and compliant with Federal Specification W-F-406E, W-F-406D, and NEMA FB 1-2014 standards
• Available in sizes from 1/2” to 6” ensuring broad application coverage

Downloads & Links

• Spec Sheet
