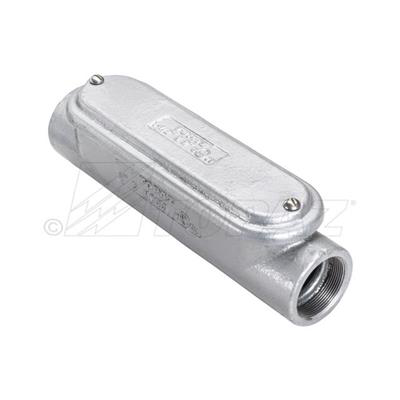

1-1/4" Mogul Conduit Body C Type with Cover and Gasket
SKU: #190750
Part: #MC4CGHDG
UPC: 751338009578
1-1/4" Mogul Conduit Body C Type with Cover and Gasket
SKU: #190750
Part: #MC4CGHDG
UPC: 751338009578
Next day delivery
Description
1-1/4" Mogul Conduit Body C Type with Cover and Gasket – Electrical Conduit Solutions
Constructed of high-quality malleable iron and finished with hot dip galvanizing, this 1-1/4" Mogul Conduit Body provides durable protection for electrical installations in industrial environments. Designed for use with rigid and IMC conduit, it features threaded NPT tapered hubs and built-in cable pulling rollers to facilitate wiring and maintenance. Suitable for electrical distributors and switchgear suppliers, it ensures weatherproof, safe conduit connections and conductor protection.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: MC4CGHDG
- Size: 1-1/4"
- Material: Malleable iron
- Finish: Hot dip galvanized
- Weight: 4.75 lbs
- UPC: 751338009578
- Maximum Number of Conductors: 3
- Maximum Conductor Size: 2 AWG
- Internal Volume: 25 in³
- Dimensions (inches): A: 9.57, B: 5.98, D: 1.71, E: 2.19, F: 2.13
- Standards: UL 514A, UL 514D, CSA C22.2 No. 18.3, NEMA 3R
Features
- Threaded NPT tapered hubs compatible with rigid and IMC conduit
- Built-in cable pulling rollers for easier conductor installation
- Smooth, rounded integral bushings to protect conductor insulation
- Weatherproof design with raised cover and neoprene gasket
- Stainless steel cover screws for corrosion resistance
- Provides access for wiring maintenance and future changes
- UL listed and CSA certified for safety and compliance
