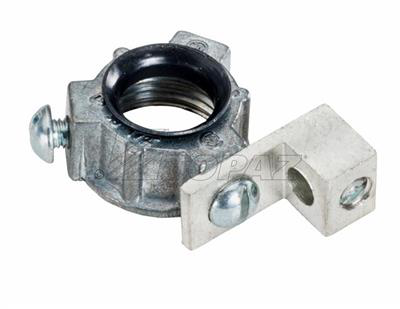

1-1/4" Insulated Zinc Metallic Grounding Bushings With Aluminum Lug

Insulated metallic grounding bushings are designed for use with accompanying aluminum lugs to terminate conduit service in electrical distribution systems. Suitable for applications involving copper or aluminum bare ground connectors, these bushings provide secure grounding and help protect wire insulation. They are ideal components for electrical distributors and switchgear suppliers seeking reliable grounding solutions with wire and cable installations.

Specifications

• Material: Die Cast Zinc
• Connection: Female Threaded
• Product Weight: 0.1700 lbs
• Size: 1-1/4"
• UL Listed: Yes
• Thermoplastic Liner Temperature Rating: 105 °C
• Manufacturer: Southwire
• Manufacturer Part #: 324TZ

Features

• Protective thermoplastic throat liner rated to 105 °C prevents wire insulation damage
• Corrosion-resistant zinc die cast construction for durability
• UL listed for use with copper or aluminum grounding conductors
• Includes aluminum lug for bonding jumper to neutral bus bar
• Round surface design prevents damage to wire insulation
• Suitable for indoor or outdoor use

Downloads & Links

• Spec Sheet
