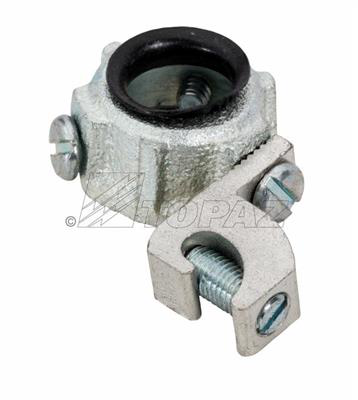

1-1/4" Insulated Malleable Iron Metallic Grounding Bushings Threadless – Electrical Grounding Solutions

This 1-1/4" insulated metallic grounding bushing is designed for terminating conduit service with an aluminum lay-in grounding lug, suitable for electrical distributors and lighting solutions requiring reliable grounding. It is compatible with both copper and aluminum bare ground connectors and is intended for use with threaded or threadless rigid conduit or IMC. The product ensures protection of wire insulation through a thermoplastic throat liner rated to 105°C, making it suitable for indoor or outdoor applications.

Specifications

• Material: Malleable Iron
• Connection: Female Threaded
• Size: 1-1/4"
• Product Weight: 0.2015 lbs
• UL Listed: Yes

Features

• Protective thermoplastic throat liner rated to 105°C prevents wire insulation damage
• Set screw, threadless design allows locking the bushing in any desired position
• Constructed from high-grade malleable iron for durability
• Suitable for use with aluminum lay-in grounding lug
• Round surface of bushing prevents damage to wire insulation
• Compatible with copper or aluminum bare ground connectors
• Indoor and outdoor applications supported
• Zinc-plated body finish for corrosion resistance
