1-1/4" Form 7 LB Type Rigid Conduit Bodies
SKU: #188671
Part: #LB4G7
UPC: 751338869080
1-1/4" Form 7 LB Type Rigid Conduit Bodies
SKU: #188671
Part: #LB4G7
UPC: 751338869080
Total Price: $52.55 per each Sold in increments of 1 each
Description

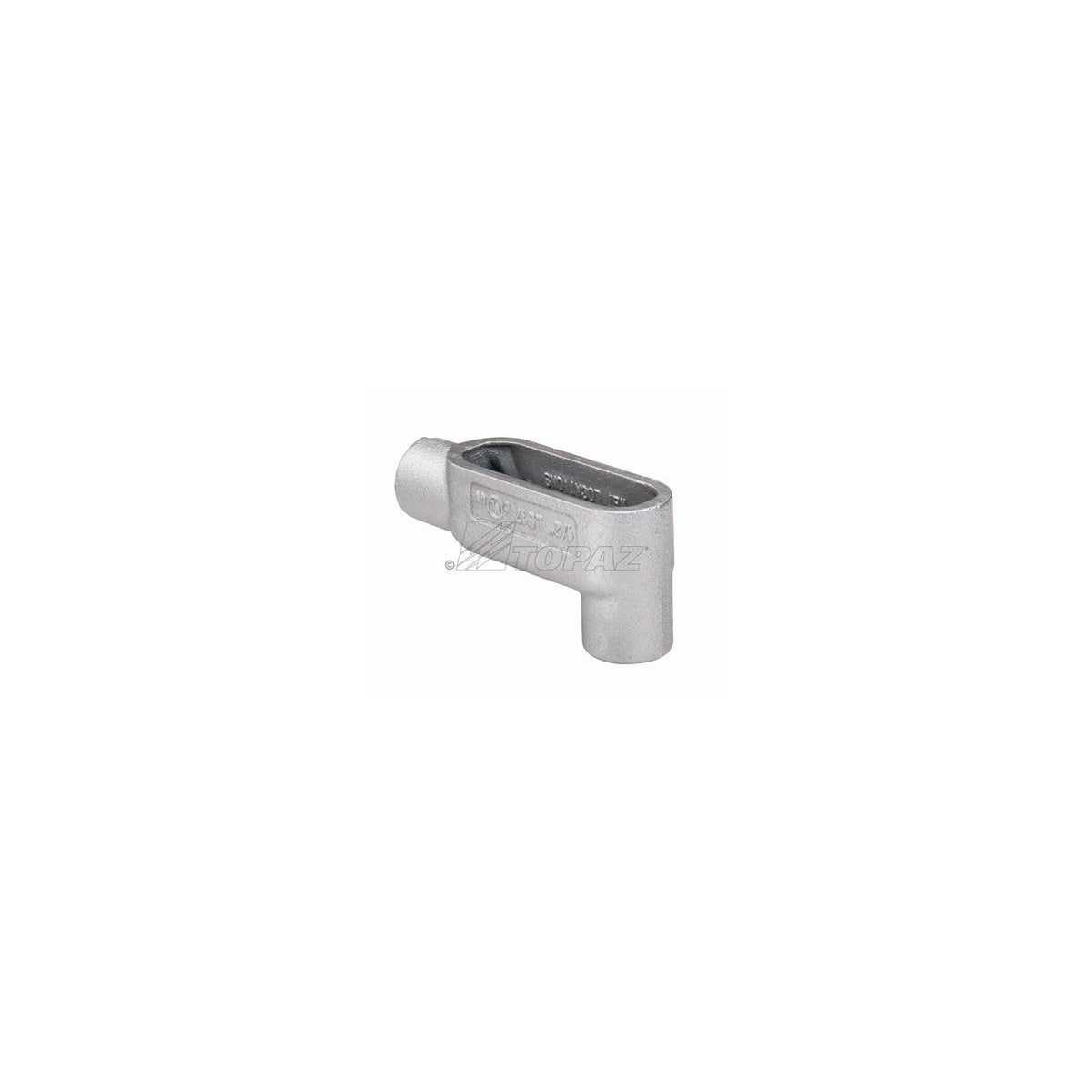

1-1/4" Form 7 LB Type Rigid Conduit Bodies – Conduit Body
The 1-1/4" Form 7 LB Type Rigid Conduit Body by Southwire is designed to facilitate 90-degree bends in conduit systems, provide access for splicing and tapping conductors, and connect or change the direction of conduit runs. Ideal for electrical distributors and switchgear suppliers, this conduit body supports maintenance and future system modifications, making it a reliable component in wire and cable installations and lighting solutions.
Specifications
- Manufacturer Part #: LB4G7
- Material: Iron
- Finish: Zinc Plated
- Color: Gray
- Hub Size: 1-1/4"
- Form: 7
- Dimensions: Length 6.5 in, Width 3.2 in, Height 2.2 in
- Product Weight: 2.5750 lbs
- Mounting: Wall Mount
- UPC: 751338869080
Features
- NPT tapered hubs for secure conduit connections
- Raintight when installed with cover and gasket, meeting NEMA FB 1/NEMA 3R standards
- Suitable for Class 1 Division 2 hazardous locations per NEC 2014 501.10(B)(4)
- Eco-friendly zinc plated finish with superior corrosion resistance
- Resistant to solvents, fuels, and acids; tested to ASTM B117 (200+ hours NaCl spray)
