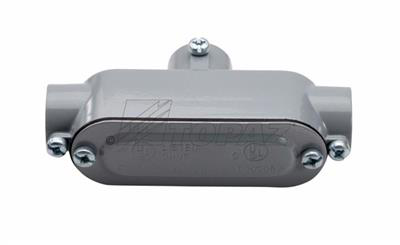

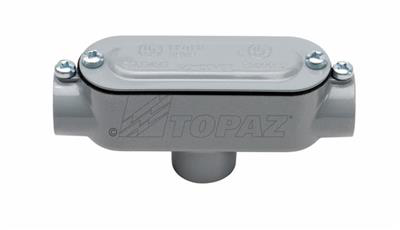

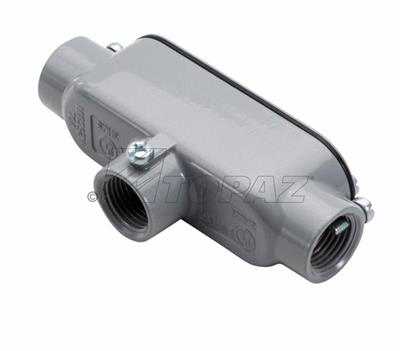

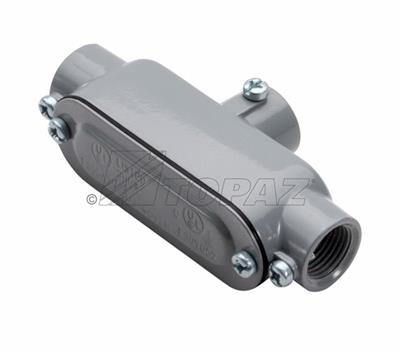

1-1/4" EMT & Rigid Combo TB Type Aluminum Conduit Bodies with Cover & Gasket – Electrical Distributor Conduit Solution

This 1-1/4" EMT & Rigid Combo TB Type Aluminum Conduit Body is engineered to provide access to conductors for pulling, splicing, and maintenance in electrical installations. Designed for use in concrete and wet locations, it is a reliable component for electrical distributors, lighting solutions, wire and cable management, and switchgear supplier applications. Its compatibility with threaded rigid metal conduit and EMT ensures versatility in various conduit systems.

Specifications

• Manufacturer: Southwire
• Manufacturer Part Number: TB4SSCG
• Material: Copper-free die cast aluminum body, stamped steel cover, neoprene rubber gasket
• Finish: Zinc plated with powder coat
• Form: T-type conduit body
• Hub Size: 1-1/4 inch NPT tapered hubs
• Dimensions: Length 7.25 in, Width 2.5 in, Height 3.5 in
• Weight: 1.7 lbs
• Mounting: Wall mount
• Application: Suitable for concrete and wet locations, compliant with NEMA FB 1 and UL Standard 514A

Features

• Combination TB type conduit body with cover and gasket for secure enclosure
• Provides easy access to conductors for pulling, slicing, and maintenance
• Designed for use with EMT and rigid metal conduit systems
• Neoprene rubber gasket ensures moisture resistance in wet locations
• Durable die cast aluminum construction offers corrosion resistance
• NPT tapered hubs facilitate secure conduit connections
• Powder coat finish enhances durability and longevity

Downloads and Links

• Product Catalog - EMT and Rigid Combination Conduit Bodies with Covers and Gaskets (TB Type)
• Manufacturer Website - Topaz Electrical Solutions
• UL Standard 514A Certification Details
