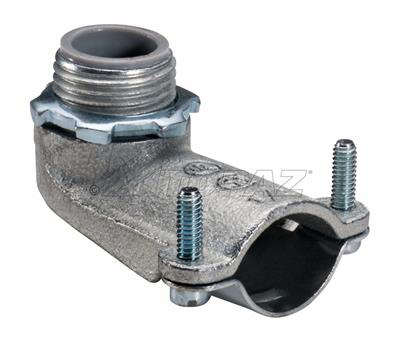

1-1/4" 90° Insulated Throat Squeeze Type BX-Flex Connector
SKU: #168152
Part: #104MI
UPC: 751338105416
1-1/4" 90° Insulated Throat Squeeze Type BX-Flex Connector
SKU: #168152
Part: #104MI
UPC: 751338105416
Total Price: $15.83 per each Sold in increments of 1 each
Description
1-1/4" 90° Insulated Throat Squeeze Type BX-Flex Connector – Flexible Metal Conduit Connector
The 1-1/4" 90° Insulated Throat Squeeze Type BX-Flex Connector by Southwire is designed for secure connection of flexible metallic conduit, AC, and steel MC cable to steel outlet boxes or metal enclosures. This connector is ideal for use in dry indoor locations where space constraints require a compact solution. It is a reliable choice for electrical distributors and lighting solutions providers requiring durable conduit fittings for wire and cable management.
Specifications
- Material: Malleable Iron
- Connection: Threaded x Squeeze
- Insulation: Insulated Throat
- Conduit Size: 1-1/4"
- Product Weight: 1.52 lbs
- Manufacturer: Southwire
- Manufacturer Part #: 104MI
- UL Listed
Features
- Durable malleable iron construction for product integrity and longevity
- Insulated throat provides protection against abrasion
- Squeeze type assembly allows for easy installation
- Compact 90° angle design suitable for tight spaces
- Zinc plated finish for corrosion resistance
- Recommended for dry indoor locations
